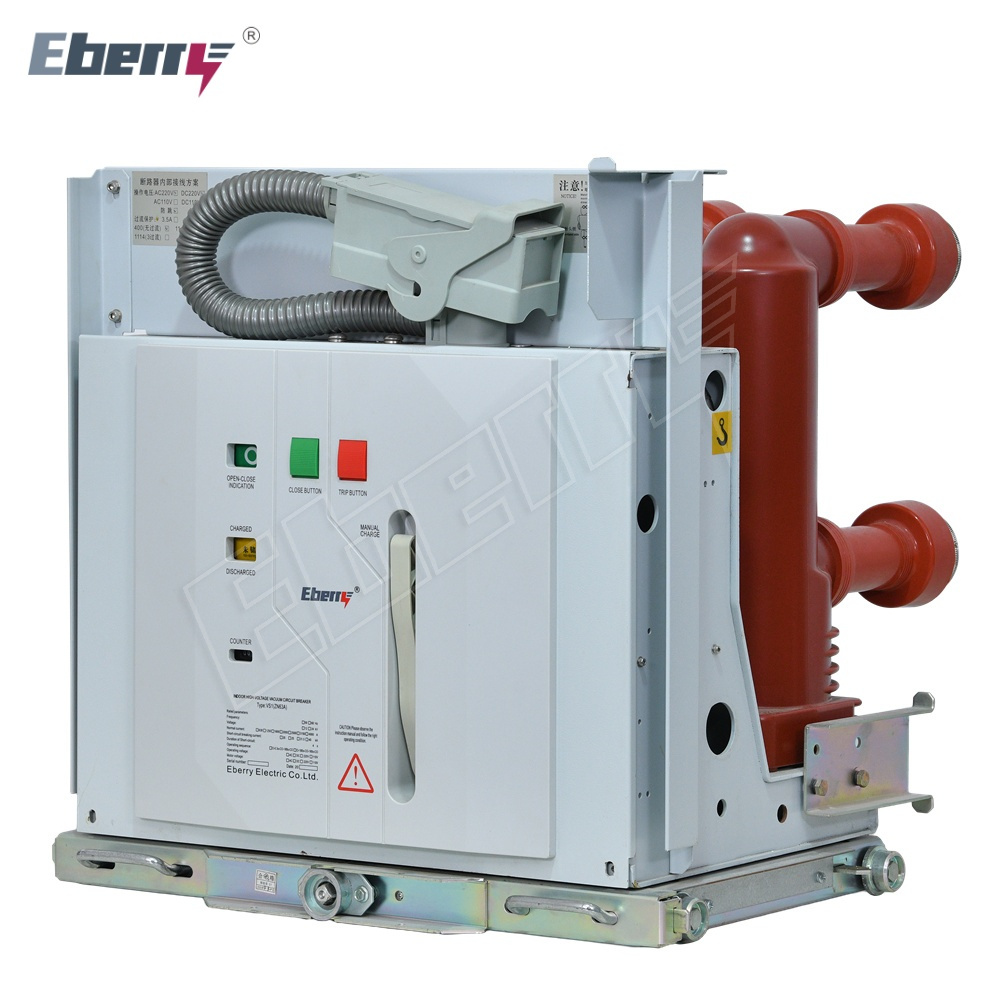

What Are the Key Features to Look for in a vacuum circuit breaker?

Industry Background and Market Demand

Vacuum Circuit Breakers (VCBs) are critical components in medium- and high-voltage power distribution systems, offering superior interruption capabilities compared to traditional air or oil-based breakers. The global shift toward renewable energy integration, grid modernization, and industrial automation has increased demand for reliable, maintenance-free switching solutions. According to industry reports, the VCB market is projected to grow steadily, driven by stricter safety regulations and the need for energy-efficient infrastructure.

Unlike SF6-based breakers, which face environmental concerns due to greenhouse gas emissions, vacuum interrupters operate in a sealed, gas-free environment, making them a sustainable choice. Utilities, manufacturing plants, and data centers increasingly favor VCBs for their compact design, high dielectric strength, and long operational life.

Core Technology and Working Principle

A vacuum circuit breaker interrupts current by separating contacts within a high-vacuum chamber (typically 10⁻⁶ to 10⁻⁷ torr). When a fault occurs, the contacts part, creating an arc that is quickly extinguished due to the lack of ionizable medium. The metal vapor from the arc condenses on the contact surfaces, ensuring rapid dielectric recovery.

Key advantages of this technology include:

- Minimal maintenance (no gas leakage or decomposition byproducts).

- High breaking capacity (up to 63 kA in modern designs).

- Fast arc extinction (within 5–10 ms).

Structural Design, Materials, and Manufacturing

1. Vacuum Interrupter

The heart of a VCB is the vacuum interrupter, which consists of:

- Contacts: Made from CuCr (copper-chromium) alloys for high conductivity and erosion resistance.

- Ceramic Envelope: Alumina or glass-ceramic housings ensure mechanical strength and insulation.

- Bellows: Stainless steel bellows allow contact movement while maintaining vacuum integrity.

2. Operating Mechanism

- Spring-operated or motor-driven mechanisms ensure precise contact movement.

- Magnetic actuators are gaining traction for reduced wear and faster response.

3. Insulation and Enclosure

- Epoxy resin or silicone-based insulation prevents surface tracking.

- Sealed enclosures protect against dust and humidity (IP65 or higher).

Critical Factors Affecting Performance

1. Contact Material and Design

- Spiral or radial contact geometries optimize arc distribution.

- High-grade CuCr alloys minimize contact welding and erosion.

2. Vacuum Integrity

- Leak rates must remain below 10⁻¹² mbar·l/s over decades.

- Advanced brazing techniques ensure long-term hermeticity.

3. Mechanical Endurance

- Rated for 10,000–30,000 operations without degradation.

- Lubrication-free designs reduce maintenance needs.

4. Dielectric Strength

- Withstand voltages up to 36 kV in standard applications.

- Proper creepage and clearance distances prevent flashovers.

Supplier Selection and Supply Chain Considerations

When sourcing VCBs, buyers should evaluate:

- Certifications: Compliance with IEC 62271, ANSI C37.04, or IEEE C37.09.

- Testing Protocols: Routine dielectric, mechanical, and temperature cycling tests.

- Manufacturing Expertise: In-house vacuum interrupter production ensures quality control.

- After-Sales Support: Availability of spare parts and technical documentation.

Reputable suppliers often provide type-test reports and third-party validation. Avoid vendors with inconsistent vacuum sealing processes or unverified contact materials.

Common Challenges and Industry Pain Points

1. Contact Erosion in High-Current Applications

- Frequent switching at high currents accelerates wear.

- Solution: Use advanced contact materials with higher erosion resistance.

2. Vacuum Degradation Over Time

- Poor brazing or bellows fatigue can lead to leaks.

- Solution: Opt for manufacturers with strict hermeticity testing.

3. Compatibility with Digital Grids

- Older VCBs may lack smart monitoring capabilities.

- Solution: Integrate IoT-enabled sensors for condition monitoring.

Applications and Case Studies

- Renewable Energy: Solar and wind farms use VCBs for feeder protection due to their rapid fault-clearing ability.

- Industrial Plants: Steel mills and chemical facilities rely on VCBs for arc furnace and motor protection.

- Railway Electrification: High-speed trains require VCBs for traction power stability.

A European utility reported a 40% reduction in maintenance costs after replacing SF6 breakers with vacuum-based alternatives.

Current Trends and Future Developments

1. Solid-State Hybrid Breakers

- Combining vacuum interrupters with semiconductor switches for ultra-fast response.

2. Smart Monitoring

- Embedded sensors for real-time contact wear and vacuum integrity analysis.

3. Eco-Friendly Materials

- Research into alternative contact alloys (e.g., CuTa) for higher sustainability.

FAQ

Q: How does a vacuum circuit breaker compare to SF6 breakers?

A: VCBs eliminate greenhouse gas risks and require less maintenance, but SF6 still dominates in ultra-high-voltage applications.

Q: What is the typical lifespan of a VCB?

A: Properly maintained VCBs last 20–30 years, with vacuum interrupters often exceeding 10,000 operations.

Q: Can VCBs be used in DC applications?

A: Yes, but special designs are needed to handle DC arc extinction, which lacks natural current zero crossings.

Conclusion

Selecting a vacuum circuit breaker requires careful evaluation of contact materials, vacuum integrity, mechanical endurance, and compliance with industry standards. As grids evolve toward smarter, greener solutions, VCBs will remain a cornerstone of reliable power distribution. Buyers should prioritize suppliers with robust testing protocols and proven field performance to ensure long-term system reliability.
