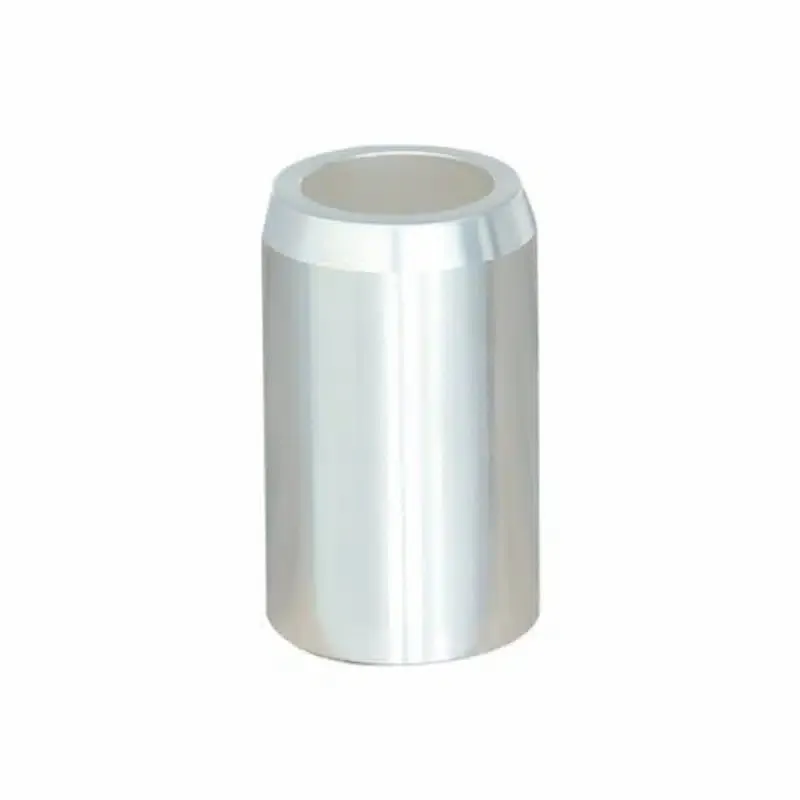

The 1250A High Voltage vacuum circuit breaker (VCB) fixed contacts Silver Plated Contacts are essential components for modern high-voltage Power Systems. These contacts ensure efficient current flow, reliable circuit interruption, and long-term operational stability. With silver-plating technology, these contacts provide superior conductivity, minimal contact resistance, and enhanced durability.

High-voltage circuit breakers are widely used in industrial, commercial, and utility power systems. They protect electrical equipment from overcurrent, short circuits, and faults. The fixed contacts in Vacuum Circuit Breakers are critical to maintaining performance, ensuring safety, and reducing maintenance requirements.

This article provides a comprehensive overview of 1250A VCB fixed contacts, including technical specifications, applications, key features, and solutions for efficient power system operation.

Technical Specifications

Accurate specifications are vital for selecting the right fixed contacts for your high-voltage vacuum circuit breaker. The following table outlines the main technical parameters:

The silver plating enhances conductivity, minimizes contact wear, and reduces maintenance frequency, making it ideal for high-current applications.

Applications

Industrial Power Systems

The 1250A fixed contacts are suitable for industrial power distribution systems, including factories, manufacturing plants, and production lines. They provide reliable switching and protection for high-current machinery.

Utility Power Networks

In utility substations, these fixed contacts ensure safe and efficient circuit interruption. They protect transformers, busbars, and distribution networks from overload and fault conditions.

Commercial Buildings

For large commercial complexes with high energy demand, 1250A VCB fixed contacts help maintain operational reliability, prevent downtime, and reduce maintenance costs.

Renewable Energy Integration

These contacts are also applicable in renewable energy systems such as solar farms and wind power stations. They enable high-voltage switching while handling fluctuating current levels efficiently.

Key Features and Advantages

The 1250A High Voltage VCB fixed contacts offer numerous advantages:

1. High Conductivity

Silver plating ensures minimal contact resistance, improving energy efficiency and reducing power loss during operation.

2. Durable Material

Constructed from high-quality copper with silver plating, the contacts resist corrosion, oxidation, and wear, extending operational life.

3. High Current Withstand

Designed for 1250A rated current, these contacts can safely handle short-circuit and overload conditions, protecting connected equipment.

4. Reliable Switching

Optimized design ensures smooth mechanical movement and consistent electrical contact, reducing arcing and contact erosion.

5. Easy Maintenance

Modular design allows quick replacement and maintenance, minimizing downtime for power systems.

6. Wide Operating Environment

These contacts perform reliably under extreme temperature ranges and high humidity, suitable for diverse environments.

Product Solutions

Efficient Maintenance Programs

To maximize the lifespan of VCB fixed contacts:

• Regular Inspection: Visual checks for wear or discoloration

• Resistance Measurement: Ensure contact resistance remains below 50 µΩ

• Lubrication: Apply suitable lubricant to moving mechanisms

Fault Detection and Troubleshooting

Common issues include:

• Contact Erosion: Resulting from frequent switching or short-circuits

• Oxidation: Silver plating prevents but does not completely eliminate oxidation

• Loose Fittings: Ensure secure mounting during installation

By following preventive measures and using high-quality 1250A fixed contacts, operational reliability is maintained while reducing costly repairs.

Replacement Guidelines

• Ensure compatibility with VCB module type and rated voltage

• Replace contacts in pairs to maintain uniform performance

• Avoid physical damage during installation

Installation Guide

Step 1: Power Isolation

Ensure the VCB is disconnected from the electrical network and properly grounded.

Step 2: Remove Old Contacts

Carefully disassemble the VCB compartment to access existing fixed contacts. Use insulated tools to prevent accidental short-circuits.

Step 3: Inspect Components

Check the contact assembly, springs, and mounting hardware for wear. Replace damaged components as needed.

Step 4: Install New Contacts

Align the 1250A silver-plated fixed contacts correctly. Secure all bolts and connections according to manufacturer torque specifications.

Step 5: Testing

Conduct mechanical and electrical tests:

• Measure contact resistance

• Perform operational switching cycles

• Verify insulation resistance

Step 6: Commissioning

After successful testing, reconnect the VCB to the system and perform load testing.

Environmental Compliance

The 1250A high voltage VCB fixed contacts meet international standards for environmental safety:

• RoHS-compliant materials

• Lead-free silver plating

• Low emission during operation

• Recyclable copper and silver materials

Using these contacts supports sustainable power distribution and reduces environmental impact.

Performance Advantages

High Reliability

Silver plating prevents oxidation and ensures consistent conductivity, making the contacts highly reliable in high-voltage applications.

Extended Service Life

With a mechanical life of 10,000 operations and electrical life of 5,000 operations, these contacts reduce the frequency of replacements.

Reduced Maintenance Costs

Durable materials and high conductivity reduce contact wear and energy loss, minimizing operational costs.

Safety Compliance

Compliant with IEC 62271-100 and national high-voltage switchgear standards, ensuring operator safety and system protection.

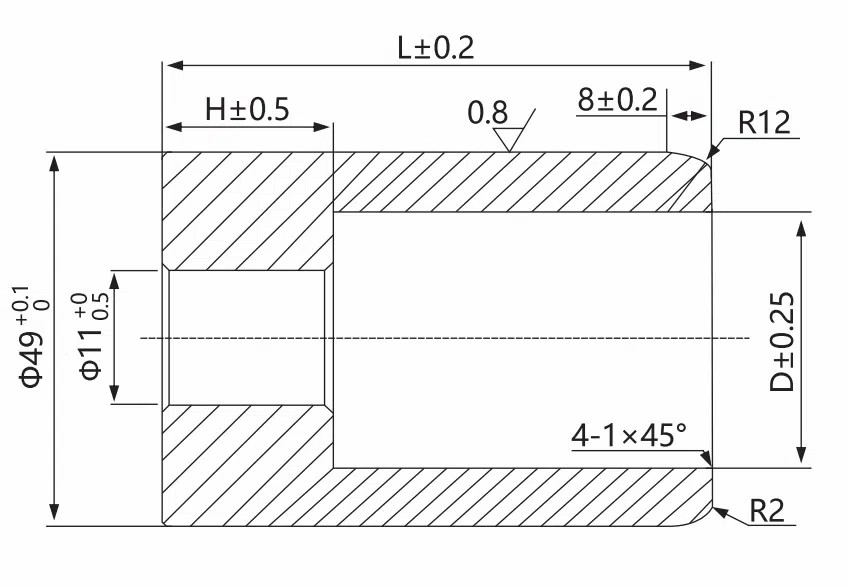

Product Parameter Table

Applications Summary

• Industrial Plants

• Utility Substations

• Commercial Complexes

• Renewable Energy Installations

Customer Benefits

• Enhanced Safety: Reduced risk of electrical faults

• High Efficiency: Lower energy loss due to excellent conductivity

• Longevity: Durable silver-plated contacts reduce replacement frequency

• Ease of Maintenance: Modular design simplifies replacement and inspection

The 1250A High Voltage Vacuum Circuit Breaker Fixed Contacts Silver Plated Contacts provide an optimal solution for high-voltage switching applications. Their superior conductivity, durability, and reliability ensure safe and efficient operation across industrial, commercial, and utility networks.

By adopting these silver-plated fixed contacts, operators can enhance performance, reduce maintenance costs, and meet international environmental and safety standards.

For reliable, high-performance VCB operation, these contacts are a critical component in modern power systems.
