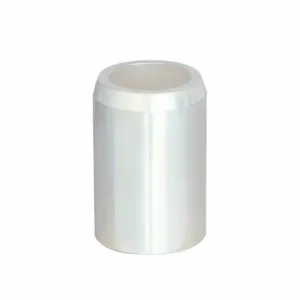

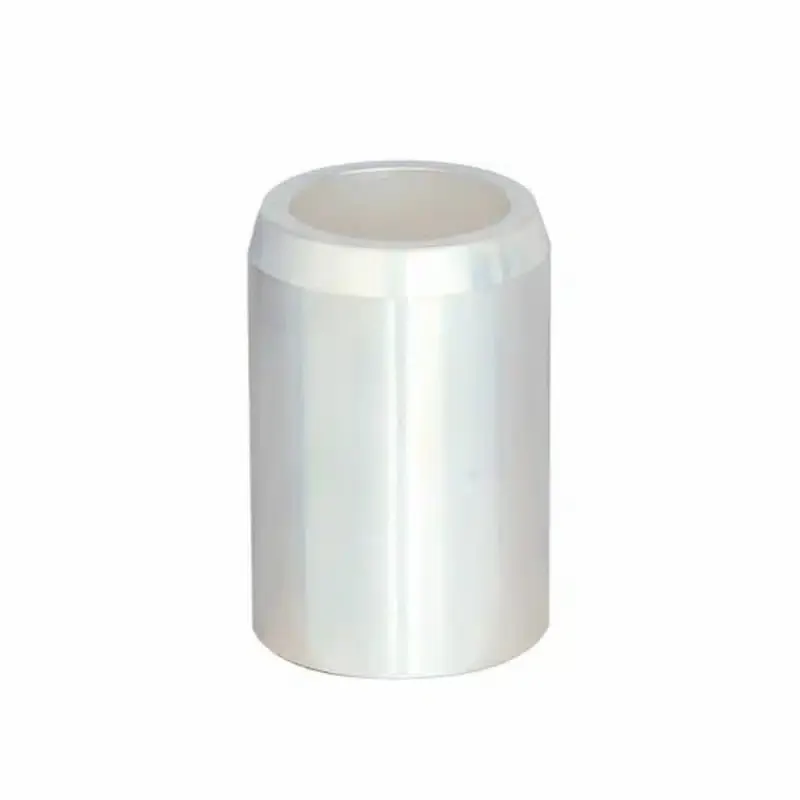

The 1600~2000A High Voltage Electric Static Contact Fixed for vacuum circuit breaker (VCB) is a critical component in high-voltage switchgear systems. Designed for industrial, utility, and commercial power networks, this fixed contact ensures reliable electrical conduction, minimal resistance, and stable performance under extreme operational conditions. With its high durability and precise engineering, it forms the backbone of safe and efficient vacuum circuit breaker operation.

Key Features:

• High current capacity: 1600~2000A

• Compatible with various VCB types

• Aluminium-copper or silver-plated materials for optimal conductivity

• Long operational lifespan and low maintenance requirements

Applications

The 1600~2000A High Voltage Electric Static Contact is widely used across multiple sectors:

These applications highlight the versatility of the contact, emphasizing its ability to handle heavy electrical loads while maintaining safety and reliability.

Technical Specifications

These technical parameters ensure high reliability and durability for demanding electrical environments.

Design and Construction

Material Selection

The fixed contact is constructed using aluminium-copper alloy or silver-plated copper, chosen for:

• High conductivity

• Low thermal expansion

• Corrosion resistance

• Mechanical strength

Structural Features

1. Precision Machined Contact Surface: Ensures stable connection and reduces electrical resistance.

2. Reinforced Base: Provides mechanical strength to withstand repeated operations.

3. Integrated Cooling Design: Optimizes heat dissipation for continuous high-current operation.

4. Modular Compatibility: Designed to fit various high-voltage VCB assemblies without additional modifications.

These design elements contribute to superior operational efficiency, reducing downtime and maintenance requirements.

Installation Instructions

Proper installation ensures optimal performance and safety. Follow these steps:

1. Pre-Installation Inspection:

• Check for any physical damage or contamination.

• Confirm compatibility with the vacuum circuit breaker model.

2. Mounting the Contact:

• Align the contact with the designated slot in the VCB assembly.

• Secure using manufacturer-specified bolts and torque settings.

3. Electrical Connection:

• Ensure tight and stable connections.

• Avoid any misalignment to prevent arcing.

4. Operational Testing:

• Perform initial open-close tests at low current.

• Verify proper mechanical and electrical operation.

5. Final Inspection:

• Confirm all bolts and fasteners are secured.

• Clean the surrounding area to prevent dust accumulation.

Safety Note: Always follow lockout/tagout procedures when installing high-voltage components.

Operation Guidelines

To maximize the lifespan of the 1600~2000A High Voltage Electric Static Contact, operators should follow these guidelines:

1. Avoid Overloading: Operate within specified current and voltage limits.

2. Monitor Temperature: Excessive heat can reduce contact life. Use thermal sensors if necessary.

3. Minimize Mechanical Stress: Avoid unnecessary opening/closing operations.

4. Routine Electrical Checks: Measure contact resistance periodically to ensure stability.

5. Environmental Protection: Install in clean, dry areas to prevent corrosion and dust accumulation.

Maintenance Requirements

Regular maintenance ensures optimal performance and longevity:

Routine maintenance helps prevent unexpected failures and maintains system reliability.

Common Issues and Troubleshooting

Proactive troubleshooting reduces downtime and prevents catastrophic failure in high-voltage systems.

Safety Considerations

1. Always de-energize the VCB before performing inspections or maintenance.

2. Use personal protective equipment (PPE), including insulated gloves and safety glasses.

3. Follow local and international electrical safety standards.

4. Maintain clear operational documentation to prevent human error.

Packaging and Transportation

Proper packaging ensures the contacts arrive in perfect condition:

• Packaging Materials: Anti-static bags, protective foam, and reinforced cardboard boxes.

• Markings: Product specifications, handling instructions, and serial numbers.

• Transportation: Use shock-absorbent crates for long-distance shipping.

• Storage Conditions: Dry, temperature-controlled environment away from dust, moisture, and corrosive chemicals.

Advantages and Benefits

1. High Conductivity: Aluminium-copper or silver-plated design ensures minimal power loss.

2. Durable Construction: Long operational lifespan with low maintenance.

3. Wide Compatibility: Fits various high-voltage VCB systems.

4. Safety Compliance: Meets IEC and ANSI standards for high-voltage components.

5. Operational Reliability: Reduces risk of power interruptions and equipment damage.

Customer Feedback

Clients worldwide praise the 1600~2000A High Voltage Electric Static Contact for:

• Easy installation and precise fit

• Long lifespan with minimal maintenance

• Reliable performance under high current loads

• Excellent electrical conductivity and heat management

Case studies show reduced downtime in substations and industrial facilities, highlighting the product’s effectiveness.

The 1600~2000A High Voltage Electric Static Contact Fixed for Vacuum Circuit Breaker is a high-quality solution for ensuring reliable, efficient, and Safe Operation of high-voltage switchgear systems. With proper installation, routine maintenance, and adherence to operational guidelines, this fixed contact provides exceptional performance and long-term reliability for industrial, utility, and commercial applications.

Investing in high-quality VCB fixed contacts not only improves system safety but also reduces maintenance costs and prevents unexpected failures.
