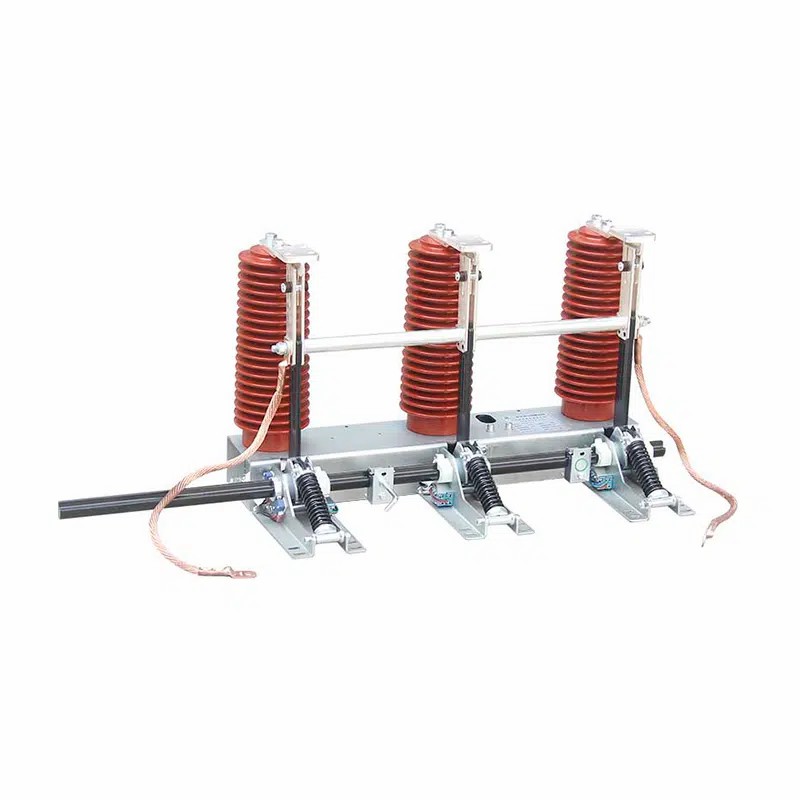

The 40.5kV JN22B-40.5/31.5 High Voltage indoor AC disconnect switch offers reliable three-pole earthing and disconnection for AC circuits up to 31.5kA. Designed for indoor switchgear, it ensures safety, protects personnel and equipment, and improves efficiency in industrial, commercial, and utility high voltage electrical distribution networks.

1. Introduction

The JN22B-40.5/31.5 High Voltage Indoor AC Disconnect Switch is a critical component for indoor high voltage (HV) systems. This three-pole earthing switch provides safe grounding and disconnection for AC circuits up to 31.5kA, protecting both personnel and equipment.

Widely used in industrial facilities, commercial buildings, and utility substations, it enhances operational safety, ensures reliable disconnection during maintenance, and supports high-voltage network stability.

2. Overview of the JN22B-40.5/31.5 Switch

• Rated Voltage: 40.5kV

• Rated Short-Circuit Current: 31.5kA

• Number of Poles: Three

• Application: Indoor switchgear and high voltage distribution systems

• Key Features:

• High reliability and durability

• Safe earthing operation

• Precision mechanical design

• Minimal maintenance requirements

• Compatibility with standard indoor HV switchgear

This earthing switch is engineered to meet stringent high voltage safety and operational standards, providing dependable performance in all indoor applications.

3. Importance of Earthing Switches in HV Systems

Earthing switches are essential for:

• Providing a secure path to ground, preventing electrical hazards.

• Ensuring personnel safety during maintenance operations.

• Isolating equipment from live circuits to avoid accidents.

• Reducing fault currents and supporting protection relays.

• Maintaining compliance with international electrical safety standards.

Correct usage and operation of earthing switches are crucial for reliable and safe HV system operation.

4. Technical Components

The JN22B-40.5/31.5 earthing switch consists of:

1. Main Contacts: Copper or silver-plated for high conductivity.

2. Actuating Mechanism: Electric motor or manual actuator for precise switching.

3. Insulation Body: High-quality material to withstand 40.5kV stress.

4. Control Circuit: Provides operational monitoring and safety feedback.

5. Safety Interlocks: Prevent accidental operation during maintenance.

These components ensure safe grounding and precise switching, minimizing risk during operations and maintenance.

5. Circuit Schematics and Wiring

Proper installation requires understanding the circuit schematics:

• Input power supply and protection fuses

• Control relay and interlock wiring

• Connections to indoor switchgear panels and VCBs

• Sensor feedback loops for monitoring

• Safety mechanisms for emergency disconnection

Following the schematics ensures correct functionality and system protection.

6. Installation Guidelines

1. Preparation: Ensure the system is de-energized, follow safety protocols, and verify earthing connections.

2. Mounting: Install the switch inside the designated indoor switchgear cabinet.

3. Electrical Connections: Connect main contacts, control circuits, and actuators as per schematic diagrams.

4. Functional Testing: Verify actuation, interlocks, and indicator panel operation.

5. Integration: Connect with protective devices, automation systems, and monitoring networks.

Correct installation is vital for reliable operation and long-term equipment safety.

7. Operational Procedures

• Normal Operation: Provides grounding and disconnection for AC circuits.

• Maintenance Mode: Isolates equipment safely with earthing for personnel protection.

• Fault Condition: Automatically grounds circuits to prevent equipment damage and ensure safety.

Following proper operational procedures reduces hazards and ensures compliance with safety regulations.

8. Safety Considerations

• Adhere strictly to international high voltage safety standards.

• Verify earthing switch operation before any maintenance.

• Follow wiring schematics for correct connections.

• Never bypass safety interlocks or protective circuits.

Safety is paramount in high voltage indoor applications.

9. Maintenance and Troubleshooting

• Common Issues: Contact wear, misaligned actuators, or control circuit faults.

• Inspection: Check interlocks, sensors, and contact alignment.

• Preventive Maintenance: Regularly inspect and clean moving parts, lubricate actuators, and test control circuits.

Routine maintenance ensures safe, reliable operation and prolongs equipment life.

10. Applications in Different Sectors

• Industrial Facilities: Ensures safe disconnection during maintenance.

• Utility Substations: Provides emergency grounding and AC isolation.

• Commercial Buildings: Enhances operational safety in high voltage distribution.

• Automation Systems: Integrates with monitoring systems for optimized HV network performance.

JN22B-40.5/31.5 provides high safety and reliability across multiple high voltage applications.

11. Advantages of JN22B-40.5/31.5 Earthing Switch

• Ensures secure grounding for AC circuits.

• Minimizes risk to personnel and equipment.

• Integrates seamlessly with indoor switchgear.

• Supports predictive maintenance and operational monitoring.

• Complies with HV safety and performance standards.

12. Technical Specifications

• Rated Voltage: 40.5kV

• Rated Current: 31.5kA

• Poles: Three

• Mounting: Indoor switchgear

• Actuation: Electric or manual

• Operating Temperature: -25°C to +55°C

• Protection: Interlocks, overcurrent protection, insulation monitoring

13. Integration with Switchgear Systems

• Works with VCBs, busbars, and protective relays.

• Provides controlled earthing without interrupting power distribution.

• Enhances switchgear operational efficiency and longevity.

14. Operator and Maintenance Benefits

• Clear indicators reduce operational errors.

• Simplified inspection and functional testing.

• Predictive maintenance via sensor feedback.

• Improved safety and operational efficiency.

15. Case Studies

• Industrial Substation: Reduced maintenance risk for 40.5kV indoor circuits.

• Utility Substation: Provided safe earthing and emergency disconnection during faults.

• Commercial High-Rise Building: Enhanced operational safety for HV distribution panels.

The 40.5kV JN22B-40.5/31.5 High Voltage Indoor AC Disconnect Switch is essential for safe, reliable, and efficient high voltage indoor applications. With precise three-pole earthing, robust construction, and seamless integration with switchgear systems, it protects personnel, equipment, and ensures smooth power distribution in industrial, commercial, and utility networks.
