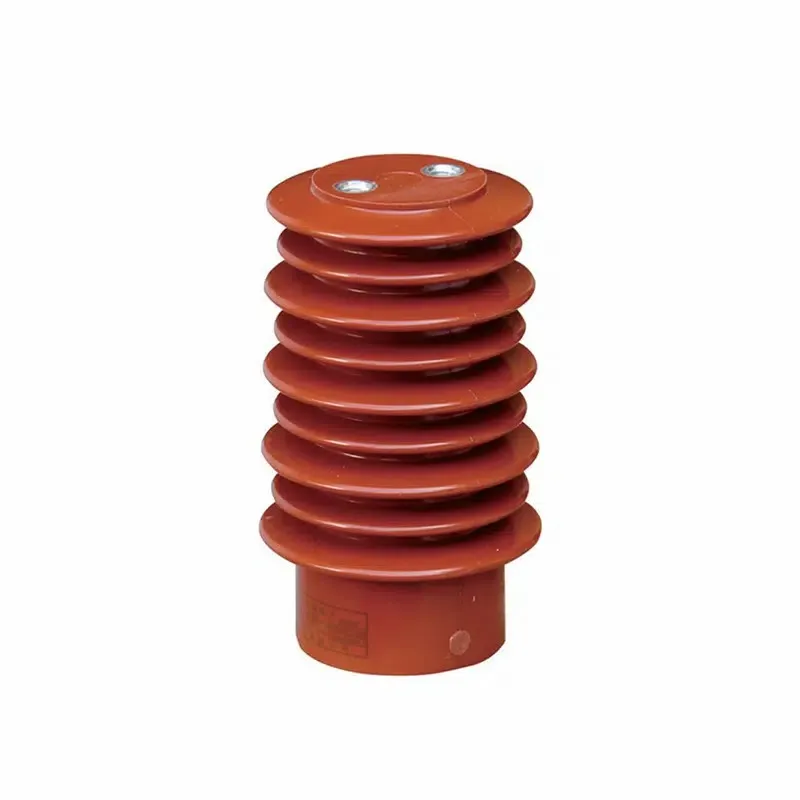

The CG104-12 Capacitive Insulator Sensor for 12KV High Voltage Systems is a state-of-the-art voltage measurement device designed for medium-voltage and high-voltage electrical networks. Utilizing advanced capacitive sensing technology and high-quality epoxy resin insulation, this sensor ensures precise voltage measurement, reliable performance, and long-term durability in critical Power Systems.

Engineered to meet international standards for high-voltage switchgear, substations, and power distribution networks, the CG104-12 provides accurate monitoring, supports smart grid integration, and enhances operational safety for utility companies and industrial facilities alike.
