The CHJ22-12 contact box is a high-performance electrical component designed for High Voltage (HV) and medium voltage (MV) switchgear systems. Built with premium epoxy resin insulation, this dual hole, three-way contact box ensures superior electrical insulation, mechanical strength, and long-term reliability. Its advanced design allows for safe and flexible connectivity in industrial, commercial, and utility applications.

This article provides a detailed overview of the CHJ22-12 Contact Box, including its application areas, maintenance procedures, operational guidelines, and inspection standards. It is intended to assist engineers, technicians, and procurement specialists in selecting and effectively using this critical switchgear component.

Product Overview

The CHJ22-12 Contact Box is engineered to meet the rigorous demands of modern switchgear systems. Key features include:

• Epoxy Resin Insulation: Provides high dielectric strength and resistance to thermal stress.

• Dual Hole Design: Allows flexible installation and multiple connection configurations.

• Three-Way Connectivity: Supports complex switchgear routing and power distribution networks.

• High and Medium Voltage Compatibility: Rated for HV and MV applications, ensuring safe and reliable operation.

• Durable Construction: Resistant to mechanical impact, vibration, and environmental stressors.

Application Areas

The CHJ22-12 Contact Box is widely used in various industrial and utility environments, including:

1. Power Distribution Systems

Used in high and medium voltage switchgear for electrical substations, ensuring safe power distribution and efficient circuit management.

2. Industrial Plants

Ideal for factories and production facilities where reliable electrical connections are essential for continuous operation.

3. Renewable Energy Systems

Suitable for wind farms, solar power plants, and other renewable energy installations, providing secure insulation and robust electrical connectivity.

4. Commercial Buildings

Ensures reliable power management in large office complexes, hospitals, and shopping centers.

5. Rail and Transportation Infrastructure

Used in railways and mass transit systems to maintain safe and efficient high voltage electrical circuits.

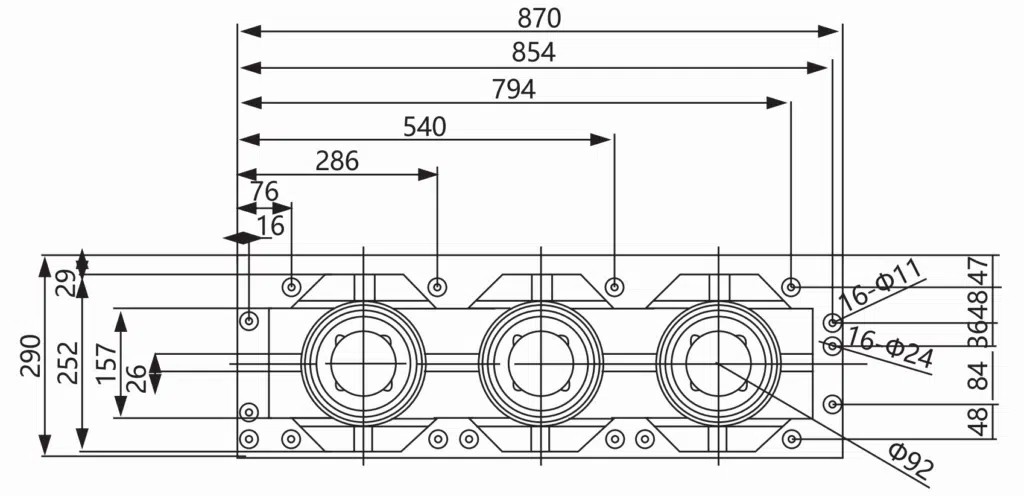

Technical Specifications

Understanding the technical details of the CHJ22-12 Contact Box is essential for correct installation and operation.

Installation Guidelines

Proper installation is critical for optimal performance and safety. Follow these steps:

1. Pre-Installation Inspection

• Verify the contact box for any visible damage.

• Ensure that the mounting area is clean and dry.

2. Mounting the Contact Box

• Align the dual holes with the switchgear busbars or mounting points.

• Secure the contact box using appropriate bolts or clamps.

• Ensure proper torque is applied to avoid mechanical stress.

3. Electrical Connections

• Connect the incoming and outgoing conductors to the three-way terminals.

• Check for tight and stable connections to prevent arcing or overheating.

• Apply insulating tape or heat-shrink tubing as needed for additional protection.

4. Final Checks

• Confirm proper alignment and secure installation.

• Verify voltage ratings and insulation integrity before energizing the system.

Operation Instructions

To ensure Safe Operation of the CHJ22-12 Contact Box:

• Power Off: Always de-energize the switchgear before performing maintenance.

• Connection Check: Inspect all connections periodically for looseness or corrosion.

• Load Management: Ensure that the connected load does not exceed the rated voltage or current specifications.

• Temperature Monitoring: Avoid prolonged exposure to temperatures outside the rated range (-40°C to +120°C).

• Environmental Protection: Keep the contact box free from dust, moisture, and chemical contaminants.

Maintenance and Care

Regular maintenance prolongs the lifespan and performance of the contact box. Recommended practices include:

1. Visual Inspection

• Inspect the epoxy resin surface for cracks or discoloration.

• Check for corrosion or oxidation on terminals and connectors.

2. Electrical Testing

• Conduct insulation resistance testing using a megohmmeter.

• Verify continuity and proper three-way functionality.

3. Cleaning Procedures

• Remove dust or debris with a dry, soft brush or compressed air.

• Avoid harsh chemicals that could damage the epoxy resin insulation.

4. Tightening and Adjustment

• Check terminal screws and bolts periodically for proper torque.

• Adjust as necessary to maintain secure electrical connections.

Inspection and Testing Standards

The CHJ22-12 Contact Box meets international standards for HV and MV switchgear. Key testing criteria include:

• Dielectric Strength Test – Ensures the epoxy insulation can withstand high voltage without breakdown.

• Thermal Aging Test – Confirms material stability under prolonged high temperature.

• Short-Circuit Withstand Test – Validates performance under fault conditions.

• Mechanical Shock and Vibration Test – Checks durability in industrial environments.

• Continuity and Contact Resistance Test – Ensures reliable three-way connectivity.

Safety Considerations

Safety is paramount when handling high and medium voltage equipment. Users should observe the following:

• Personal Protective Equipment (PPE): Wear insulating gloves, safety glasses, and protective clothing.

• De-Energization: Always ensure power is disconnected before installation or maintenance.

• Proper Tools: Use insulated tools rated for HV/MV operations.

• Training: Only qualified personnel should handle the CHJ22-12 Contact Box.

• Emergency Procedures: Be familiar with emergency shutdown procedures and fault isolation.

Advantages of CHJ22-12 Contact Box

The CHJ22-12 offers several advantages over traditional contact boxes:

1. Enhanced Insulation – Epoxy resin provides superior electrical and thermal resistance.

2. Flexible Connectivity – Dual hole, three-way design allows complex switchgear configurations.

3. High Reliability – Designed to withstand mechanical stress, short circuits, and extreme temperatures.

4. Low Maintenance – Durable construction reduces the need for frequent service.

5. Global Compliance – Meets IEC 62271 and other international HV/MV switchgear standards.

Troubleshooting

Common issues and recommended solutions include:

The CHJ22-12 Contact Box High Voltage Medium Voltage Switchgear Insulation Epoxy Resin Dual Hole Three Way is an essential component for reliable and safe power distribution systems. Its advanced epoxy resin insulation, dual hole design, and three-way connectivity make it suitable for a wide range of industrial, commercial, and utility applications. Proper installation, regular maintenance, and adherence to inspection standards ensure long-term performance, safety, and compliance with international switchgear standards.

Investing in the CHJ22-12 Contact Box ensures enhanced system reliability, reduced downtime, and improved operational efficiency in modern electrical networks.
