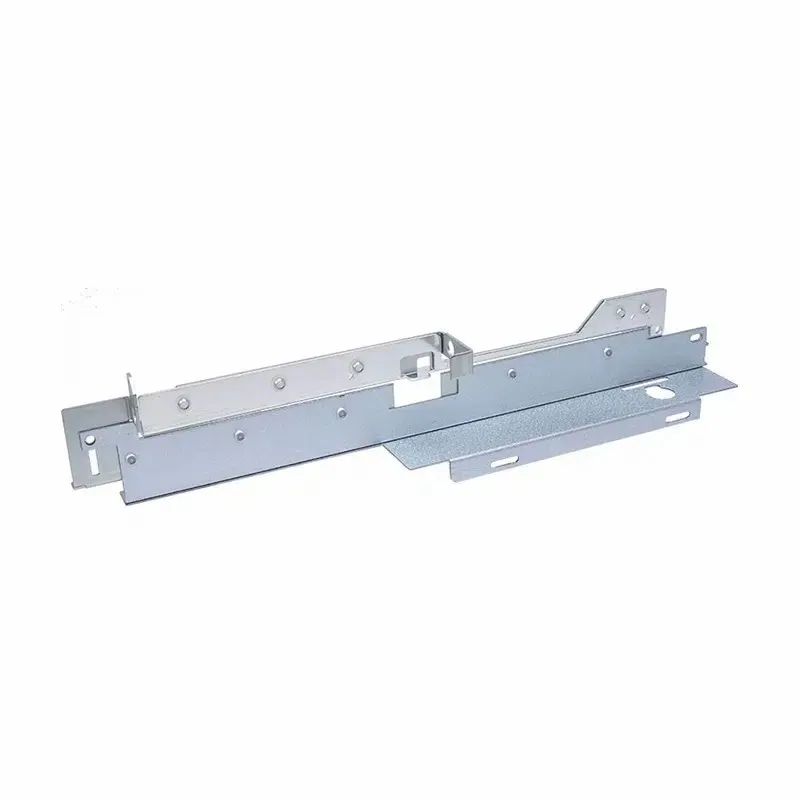

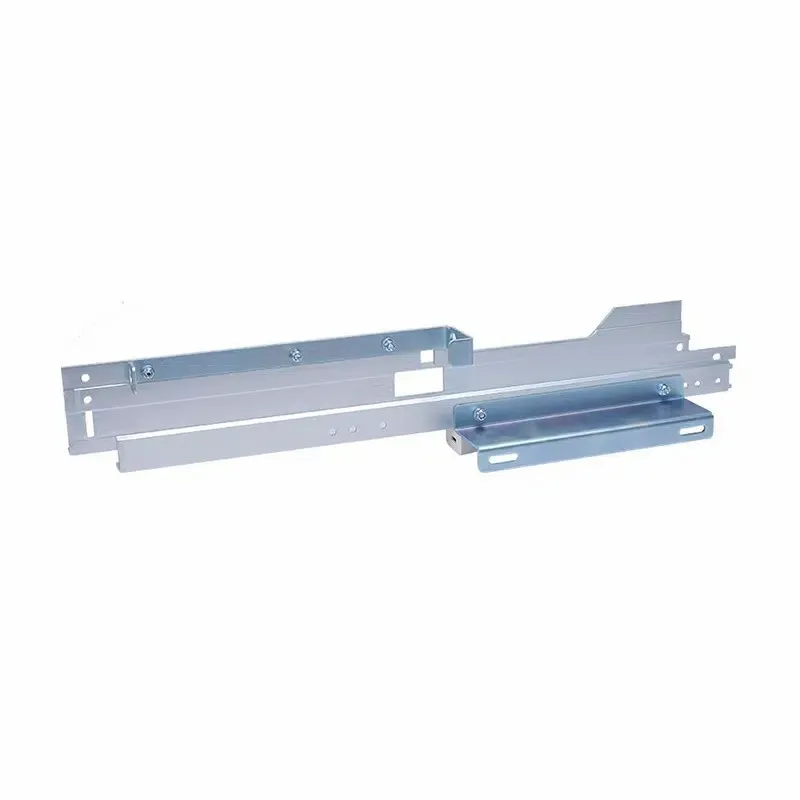

The standard guide rail 5EB.260.011 ensures reliable, smooth, and precise operation of medium-voltage Switchgear Components, enhancing safety and longevity in power distribution systems.

Introduction

In modern power distribution systems, reliable mechanical components are essential for smooth operation and safety. The Standard guide rail 5EB.260.011 is a high-quality component specifically designed for medium-voltage switchgear systems, ensuring precise guidance and support of movable parts.

switchgear guide rails play a critical role in maintaining equipment alignment, operational safety, and stability. Industrial, commercial, and utility environments rely on such components for efficient and safe electrical distribution.

The 5EB.260.011 guide rail provides long-term durability, robust mechanical design, and precise operation, making it ideal for indoor and outdoor medium-voltage switchgear cabinets.

What Is a Standard Guide Rail?

A guide rail is a structural component that directs and supports the movement of switchgear components such as circuit breakers, shutters, and busbars. Proper guidance ensures:

• Smooth insertion and withdrawal of equipment

• Correct alignment to prevent mechanical stress

• Reduced wear and tear on moving components

• Enhanced operational safety for maintenance personnel

The 5EB.260.011 model is a standardized rail designed for medium-voltage switchgear applications, providing a reliable and cost-effective solution for electrical distribution systems.

Key Features of the Standard Guide Rail 5EB.260.011

The 5EB.260.011 guide rail offers several key advantages:

• Precise Dimensions: Ensures accurate alignment of switchgear components

• Durable Materials: High-strength steel or alloy construction for long service life

• Smooth Operation: Low friction surface reduces mechanical resistance

• Compatibility: Fits standard medium-voltage switchgear cabinets

• Corrosion Resistance: Ideal for industrial and utility environments

• Easy Installation: Mounting design allows quick and safe assembly

• Low Maintenance: Minimal lubrication and wear over years of use

These features make the 5EB.260.011 guide rail a reliable choice for all medium-voltage Switchgear Installations.

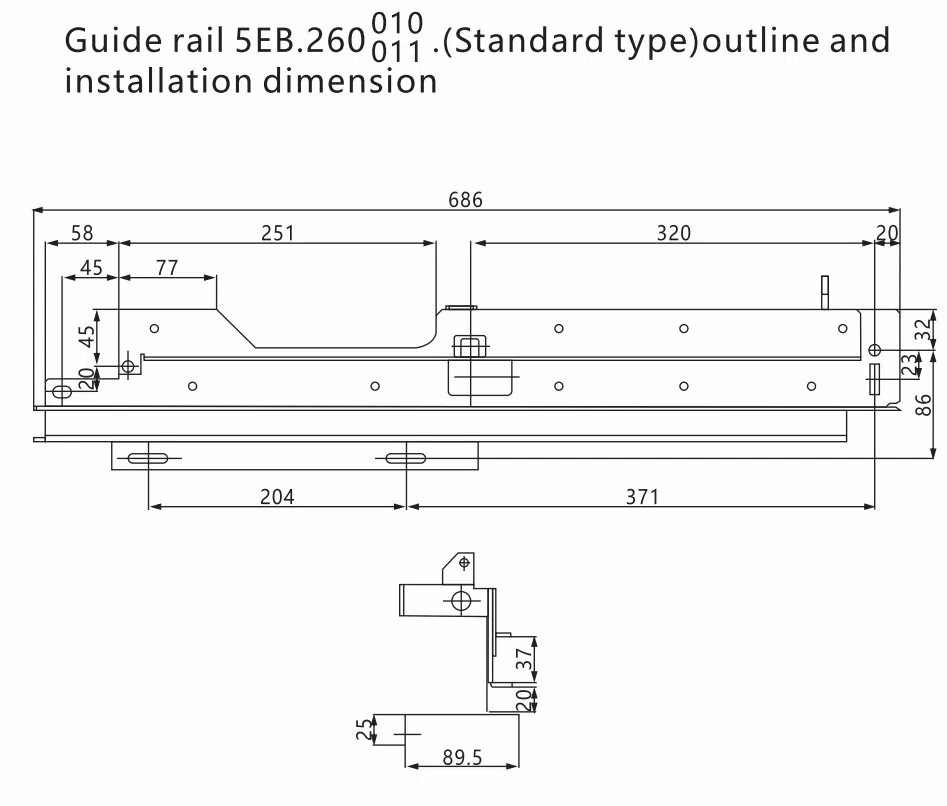

Technical Specifications

Typical specifications for the 5EB.260.011 Standard Guide Rail include:

• Material: High-strength steel or alloy

• Length: Standardized for medium-voltage cabinets

• Width & Thickness: Engineered for precise fit and load-bearing capacity

• Surface Finish: Smooth, low-friction, corrosion-resistant coating

• Load Capacity: Designed to support heavy switchgear components

• Temperature Range: -10°C to +50°C for indoor use

• Mounting Type: Fixed or slide-in configuration for cabinets

These specifications ensure consistent performance and operational safety in various industrial and commercial electrical applications.

Working Principle

The guide rail functions as a track for movable switchgear components.

1. Smooth Guidance: Ensures circuit breakers and shutters move along the correct path without deviation.

2. Alignment Maintenance: Maintains precise alignment between interlocking components.

3. Mechanical Protection: Prevents excessive stress or impact on equipment during insertion or withdrawal.

4. Operational Safety: Minimizes risk of misalignment, which could cause electrical faults or mechanical damage.

The 5EB.260.011 guide rail guarantees that components operate smoothly, safely, and reliably over long service periods.

Advantages of the 5EB.260.011 Guide Rail

1. Enhanced Operational Safety

Maintains proper alignment of switchgear components, reducing the risk of mechanical faults.

2. Smooth and Reliable Operation

Low-friction design enables effortless insertion and withdrawal of circuit breakers and shutters.

3. Long-Term Durability

High-quality materials ensure consistent performance even under heavy operational loads.

4. Reduced Maintenance Costs

Minimal wear and corrosion-resistant design lower the need for frequent replacement or repair.

5. Easy Integration

Standardized design ensures compatibility with a wide range of medium-voltage switchgear cabinets.

Applications

The 5EB.260.011 Standard Guide Rail is suitable for a wide range of medium-voltage switchgear applications, including:

• Industrial Facilities: Factories requiring reliable power distribution

• Utility Substations: Ensuring smooth operation of busbars and circuit breakers

• Commercial Buildings: Large complexes with high electricity demands

• Renewable Energy Plants: Solar, wind, and hybrid power installations

• Transportation Infrastructure: Airports, railways, and metro stations

Its versatility makes it an ideal solution for indoor medium-voltage switchgear systems.

Installation Guidelines

Proper installation ensures the guide rail functions correctly:

1. Verify Compatibility: Ensure the 5EB.260.011 fits the intended switchgear cabinet.

2. Check Alignment: Confirm the rail is mounted level and aligned with other components.

3. Secure Mounting: Use recommended screws and fasteners for stability.

4. Test Movement: Insert and withdraw components to ensure smooth operation.

5. Periodic Inspection: Check for wear, corrosion, or misalignment.

Correct installation guarantees long-term safety and operational efficiency.

Maintenance Tips

Although the guide rail is low-maintenance, periodic checks improve reliability:

• Inspect for mechanical wear or deformation

• Clean surfaces to remove dust and debris

• Apply light lubrication if needed for smooth movement

• Replace damaged or worn rails promptly

• Verify alignment after major maintenance or cabinet modifications

Regular maintenance ensures continuous safe and efficient switchgear operations.

Comparison with Alternative Guide Rails

Compared to other rail solutions:

• Standardized rails like 5EB.260.011 ensure universal compatibility and easy replacement.

• Custom rails may provide unique dimensions but increase costs and maintenance complexity.

• Hybrid systems with integrated sensors can provide monitoring but may require more maintenance.

The 5EB.260.011 provides a balanced solution of reliability, cost-effectiveness, and operational safety.

Future Trends in Guide Rail Technology

• IoT Integration: Sensors embedded in rails for monitoring wear and alignment

• Advanced Materials: Composite materials for higher durability and lower weight

• Modular Designs: Adjustable rails for flexible switchgear layouts

• Digital Maintenance Alerts: Real-time monitoring for predictive maintenance

Despite evolving technology, the 5EB.260.011 Standard Guide Rail remains a fundamental component for safe and reliable medium-voltage switchgear operations.

Conclusion

The Standard Guide Rail 5EB.260.011 is an essential component for medium-voltage switchgear systems. Its robust construction, precise guidance, and low-maintenance design ensure smooth, safe, and reliable operation of circuit breakers, shutters, and other movable components.

For industrial, commercial, and utility applications, the 5EB.260.011 provides a long-lasting, safe, and efficient solution for medium-voltage indoor switchgear systems.
