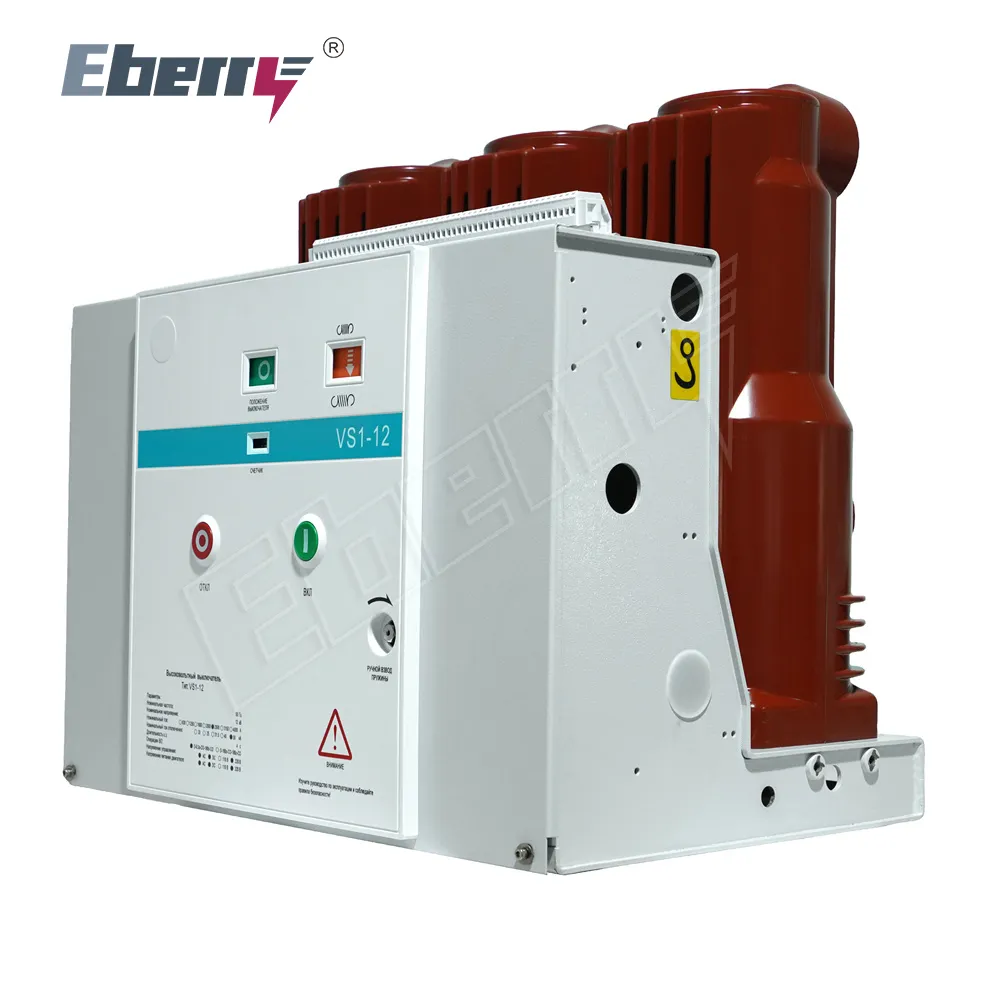

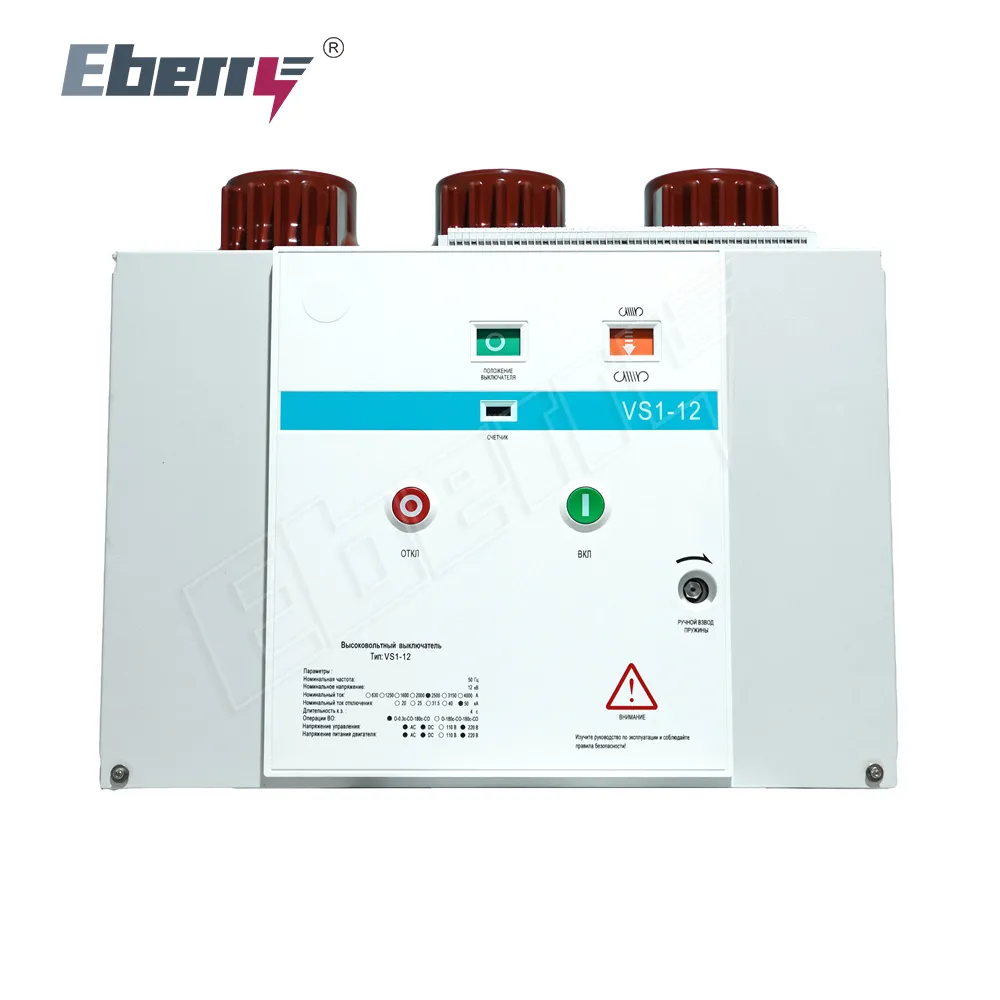

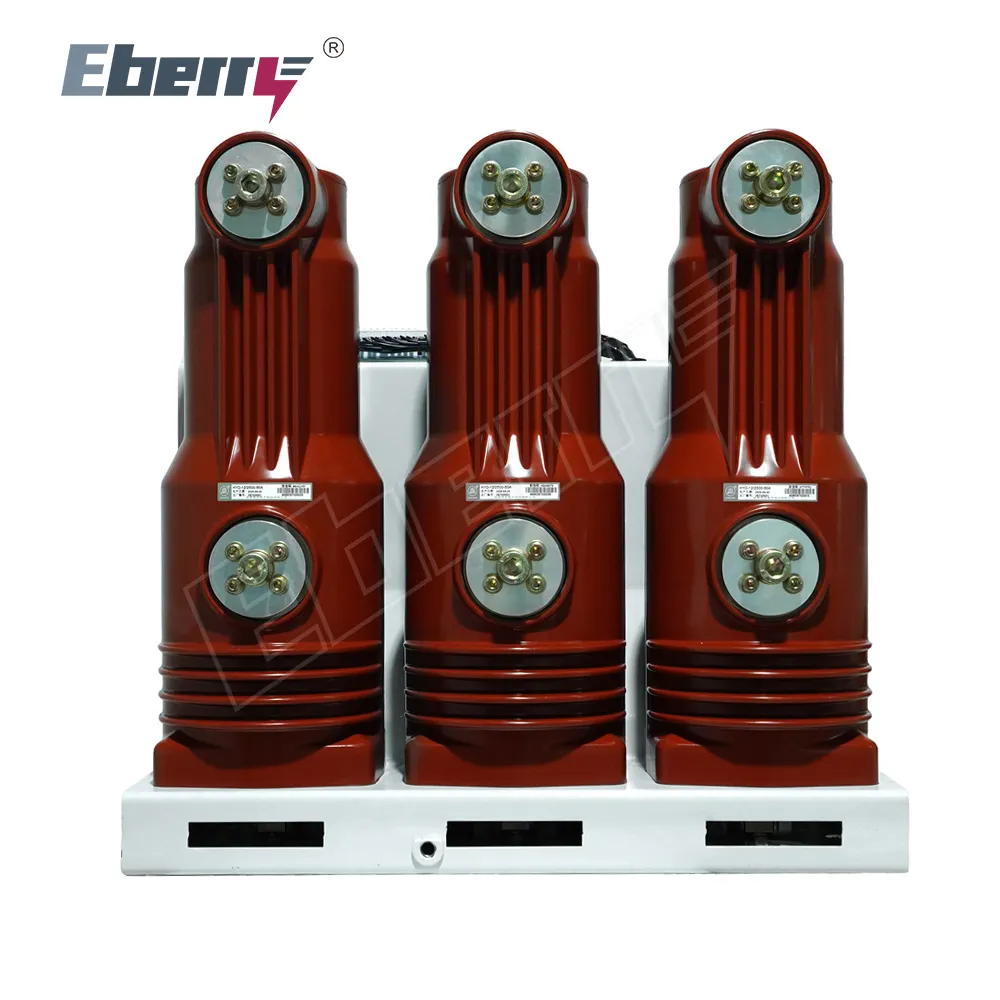

The VS1-12 vacuum circuit breaker with 2500A rated current and 50kA breaking capacity adopts an optimized compact structural design. The phase-to-phase distance is reduced to only 210mm, compared with the conventional 275mm design widely used in traditional Vacuum Circuit Breakers.

This compact structure significantly improves space utilization inside the switchgear panel, making it especially suitable for KYN28 metal-clad switchgear systems where both high current performance and compact layout are required.

1. Key Structural Comparison

2. Technical Advantages

· Reduced phase spacing design improves overall panel compactness

· Optimized for high current (2500A) applications

· Enhances switchgear space utilization efficiency

· Supports compact KYN28 switchgear cabinet design

· Ideal for modern medium voltage distribution systems

· Suitable for EPC projects requiring compact engineering layout

3. Application Scenarios

The VS1-12 2500A 50kA compact vacuum circuit breaker is widely used in:

· KYN28 metal-clad switchgear systems

· Industrial power distribution systems

· Compact MV substations

· Power plants and utility networks

· EPC turnkey switchgear projects

· Space-limited electrical rooms

4. Product Highlights
