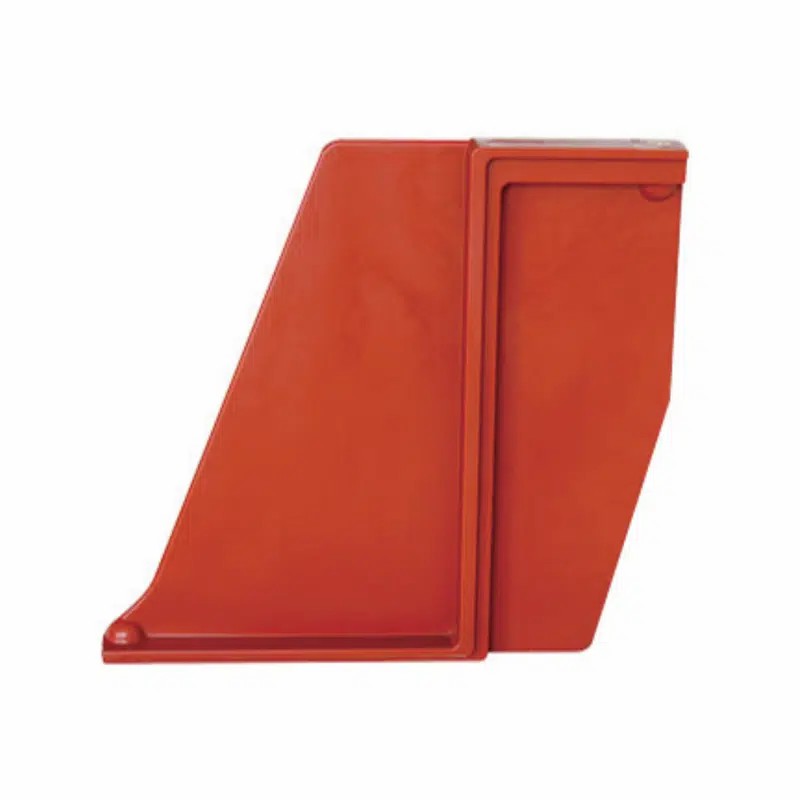

The WB7-40.5 40.5kV Red Epoxy Resin Bending Plate is specifically designed to provide insulation and isolation in high-voltage electrical networks. Made from durable red epoxy resin, this bending plate ensures enhanced dielectric strength, long-term reliability, and environmental resistance, making it an ideal choice for switchgear, transformers, substations, and industrial high-voltage applications.

This comprehensive guide covers product applications, technical specifications, storage conditions, and key features, structured with clear headings, tables, and professional language, suitable for website content, B2B platforms, and technical documentation.

Product Applications

The WB7-40.5 bending plate serves multiple functions in high-voltage networks:

• Switchgear Insulation: Provides effective electrical isolation between conductive elements, reducing the risk of flashover.

• Substation Safety: Enhances insulation performance in medium and high-voltage substations.

• Transformer Protection: Maintains safe separation between transformer components, preventing leakage and short circuits.

• Industrial Power Systems: Supports safe and reliable operations in factories, plants, and commercial facilities.

• Renewable Energy Installations: Suitable for wind and solar energy transformer circuits, ensuring high-voltage insulation and safety.

The plate’s epoxy resin construction allows it to withstand harsh environmental conditions while maintaining mechanical and dielectric performance.

Product Technical Specifications

The WB7-40.5 bending plate is manufactured under strict quality control to meet international high-voltage insulation standards, ensuring consistent performance and safety in demanding applications.

Storage Conditions

Proper storage is essential to maintain the performance and lifespan of the WB7-40.5 bending plate:

1. Temperature Control: Store in a dry environment with temperatures between -20°C and +45°C.

2. Humidity Control: Maintain relative humidity below 70% to prevent moisture absorption.

3. Avoid Direct Sunlight: UV exposure may degrade the epoxy resin over time.

4. Stacking: Do not exceed recommended stacking height to prevent mechanical deformation.

5. Handling: Use proper lifting equipment or manual handling with gloves; avoid dropping or striking the plates.

6. Dust and Contaminants: Keep the storage area clean to avoid dust accumulation or chemical contamination.

Product Highlights

The WB7-40.5 bending plate offers several advantages that make it ideal for high-voltage networks:

1. High Dielectric Strength: Capable of withstanding 40.5kV, ensuring safety and reliability.

2. Durable Epoxy Resin Material: Resistant to mechanical stress, temperature variations, and chemical exposure.

3. Enhanced Insulation and Isolation: Prevents flashover, leakage, and electrical faults.

4. Lightweight and Easy to Install: Modular design simplifies mounting and replacement.

5. Environmental Resistance: UV, moisture, dust, and chemical resistance extend service life.

6. Compliance with Standards: Meets international high-voltage insulation and safety standards.

These features make the WB7-40.5 bending plate an essential component in modern power distribution and industrial electrical networks.

Installation Guidelines

Pre-Installation Checks

• Inspect each plate for cracks, defects, or contamination.

• Verify the correct model and rated voltage (WB7-40.5, 40.5kV).

• Ensure mounting surfaces are clean, level, and capable of supporting the plate.

Mounting Procedure

1. Align the bending plate with designated slots or mounting points in the switchgear or electrical network.

2. Secure the plate using recommended fasteners without over-tightening.

3. Maintain proper spacing between conductive components to prevent flashover.

4. Confirm stability and absence of vibration after installation.

Post-Installation Verification

• Check insulation resistance and dielectric performance.

• Ensure all safety barriers are in place.

• Conduct operational testing before energizing the system.

Operational Guidelines

• Avoid Overloading: Do not exceed rated voltage or current.

• Environmental Awareness: Avoid contact with chemicals, water accumulation, or dust buildup.

• Regular Inspections: Check for mechanical damage, cracks, or discoloration.

• Cleaning: Use a soft, dry cloth or mild detergent; avoid abrasive materials.

• Monitoring: Periodically measure insulation resistance in high-pollution environments.

Maintenance Recommendations

Regular maintenance ensures long-term reliability, enhanced performance, and operational safety.

Environmental Performance

The WB7-40.5 bending plate is designed for harsh environmental conditions:

• Temperature Resistance: -40°C to +85°C for indoor or outdoor applications.

• Moisture Resistance: Epoxy resin prevents water absorption and degradation.

• UV Protection: Maintains insulation properties under long-term sunlight exposure.

• Chemical Resistance: Resistant to oils, acids, and industrial chemicals.

• Dust and Pollution: Minimizes contamination effects through smooth surface and design.

Comparison with Standard Insulators

Troubleshooting

The WB7-40.5 40.5kV Red Epoxy Resin Bending Plate ensures insulation and isolation in high-voltage electrical networks. Its durable red epoxy construction provides enhanced dielectric strength, mechanical robustness, and environmental resistance. Ideal for switchgear, transformers, substations, and industrial applications, delivering reliable performance, safety, and long-term operational efficiency.

The WB7-40.5 40.5kV Red Epoxy Resin Bending Plate is a reliable and high-performance solution for modern high-voltage electrical networks. Its durable epoxy resin construction, enhanced insulation, mechanical strength, and environmental resistance make it suitable for switchgear, transformers, substations, and industrial applications. Proper storage, installation, and maintenance ensure long-term safety, reliability, and operational efficiency.
