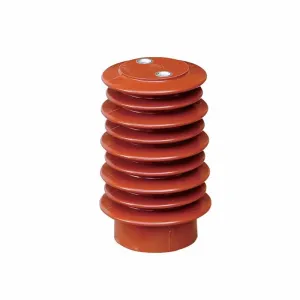

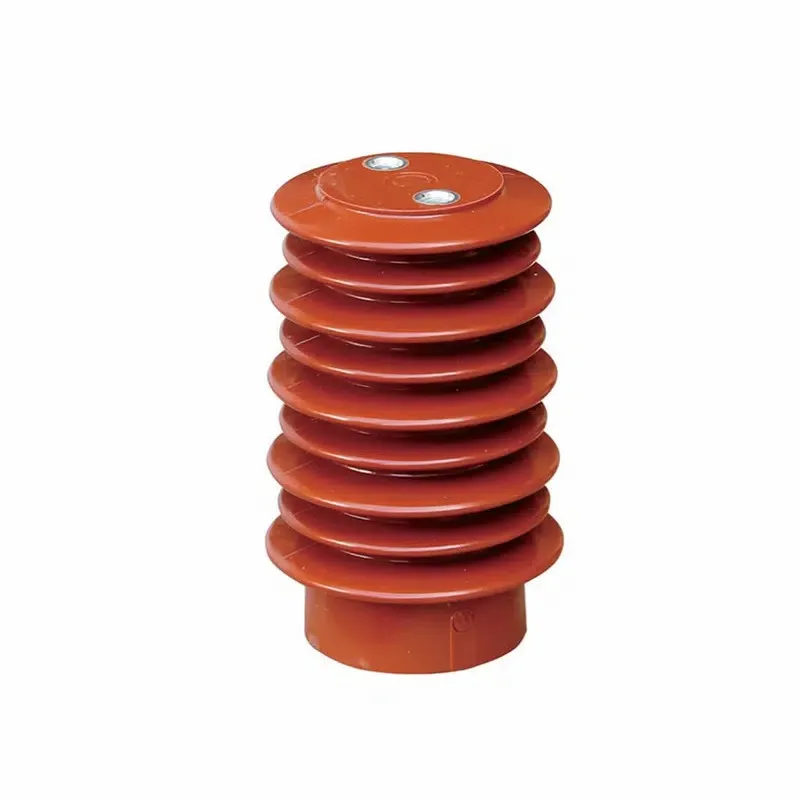

The ZJ102-12 Capacitive Voltage Sensor is a precision device engineered for accurate voltage measurement in 12kV high voltage switchgear systems. Designed for substations, industrial control panels, and automated monitoring networks, it offers superior reliability, high insulation performance, and seamless integration with electrical systems. Its capacitive sensing technology ensures precise readings, reducing operational errors and improving system efficiency.

Product Overview

Key Features

• Designed for 12KV High Voltage systems

• Capacitive voltage measurement technology

• High dielectric insulation

• Compact and durable structure

• Easy integration into industrial switchgear

• High environmental resistance

• Reliable long-term performance

Applications

The ZJ102-12 sensor is widely used in:

• Electrical substations

• Industrial switchgear monitoring

• Automated voltage measurement systems

• Power distribution networks

• High-voltage control panels

Technical Specifications

Understanding the technical specifications is essential for proper application, installation, and maintenance. The table below summarizes the key parameters of the ZJ102-12 sensor:

Design Principles

The ZJ102-12 sensor incorporates several key design concepts:

1. High-Quality Epoxy Resin Insulation: Provides excellent dielectric strength, mechanical stability, and resistance to environmental stress.

2. Capacitive Sensing Mechanism: Ensures highly accurate voltage measurements with minimal drift over time.

3. Compact and Modular Structure: Allows installation in various switchgear configurations without requiring extensive modification.

4. Durable Housing: Resistant to UV radiation, moisture, and temperature fluctuations.

5. Safety-Oriented Design: Protects operators and prevents electrical hazards by integrating high-voltage insulation with robust structural integrity.

Installation Guide

Proper installation ensures sensor accuracy and system safety. The following steps outline the installation process:

Step 1: Pre-Installation Inspection

• Verify the sensor specifications against system requirements.

• Inspect the sensor for physical damage, cracks, or contamination.

• Check the mounting hardware and accessories.

Step 2: Mounting Preparation

• Clean the installation surface.

• Ensure sufficient clearance for wiring and ventilation.

• Verify that the switchgear is de-energized before mounting.

Step 3: Mechanical Installation

• Position the sensor according to manufacturer guidelines.

• Secure using screws or mounting brackets.

• Ensure the sensor is aligned and stable to prevent vibrations.

Step 4: Electrical Connection

• Connect the sensor output to the measurement or monitoring device.

• Follow polarity and grounding instructions carefully.

• Verify connections are secure and insulated properly.

Step 5: Functional Testing

• Power up the switchgear system.

• Monitor sensor output for stability.

• Confirm that readings align with expected voltage levels.

Maintenance and Care

Routine maintenance ensures longevity and reliable performance. The ZJ102-12 sensor requires the following care:

Cleaning

• Use a dry, soft cloth to remove dust.

• Avoid abrasive materials or solvents that can damage epoxy resin surfaces.

• For stubborn contamination, use a mild detergent with water, then dry thoroughly.

Periodic Inspections

• Inspect insulation surfaces for cracks or discoloration.

• Check for loose mounting or electrical connections.

• Measure sensor output periodically to detect drift or anomalies.

Troubleshooting Common Issues

• Unstable Readings: Check wiring connections and grounding.

• No Output Signal: Verify system voltage and sensor orientation.

• Physical Damage: Replace the sensor immediately to avoid safety hazards.

Recommended Maintenance Frequency

• Visual inspection: every 6 months

• Electrical testing: annually

• Complete calibration: every 2-3 years or as required by operational standards

Performance Advantages

The ZJ102-12 sensor offers several technical advantages over conventional voltage sensors:

1. High Accuracy: Capacitive technology ensures minimal error and stable readings.

2. Wide Temperature Tolerance: Operates reliably from -40°C to +85°C.

3. Environmental Resilience: Resistant to dust, moisture, and mechanical stress.

4. Compact Design: Saves space within switchgear cabinets.

5. Ease of Integration: Compatible with existing monitoring and automation systems.

Safety Considerations

To ensure Safe Operation:

• Always disconnect power before installation or maintenance.

• Avoid contact with exposed high-voltage components.

• Use personal protective equipment (PPE) as per industry standards.

• Follow local electrical safety codes and manufacturer guidelines.

Quality Assurance

Each ZJ102-12 sensor undergoes strict quality control procedures, including:

• Visual inspection for structural integrity

• Electrical testing under rated voltage conditions

• Dielectric and insulation resistance testing

• Calibration verification against reference voltage sources

• Environmental testing (temperature, humidity, UV exposure)

These processes guarantee consistent performance and reliability in industrial applications.

Integration with Switchgear Systems

The ZJ102-12 sensor can be integrated into various high-voltage switchgear systems:

Environmental Considerations

The ZJ102-12 sensor complies with international environmental standards:

• RoHS-compliant materials

• Epoxy resin insulation with long service life

• Minimal maintenance waste due to durability

• Reduced energy loss through efficient capacitive measurement

User Feedback and Applications

Many industrial users report:

• Increased measurement accuracy

• Reduced system downtime

• Simple integration into existing switchgear

• Reliable operation under harsh environmental conditions

The ZJ102-12 Capacitive Voltage Sensor provides a reliable, high-performance solution for 12KV high voltage switchgear applications. With its precise capacitive sensing technology, durable insulation, compact design, and ease of integration, it ensures safety, accuracy, and long-term operational efficiency. Routine maintenance and adherence to installation guidelines maximize sensor lifespan and performance.
