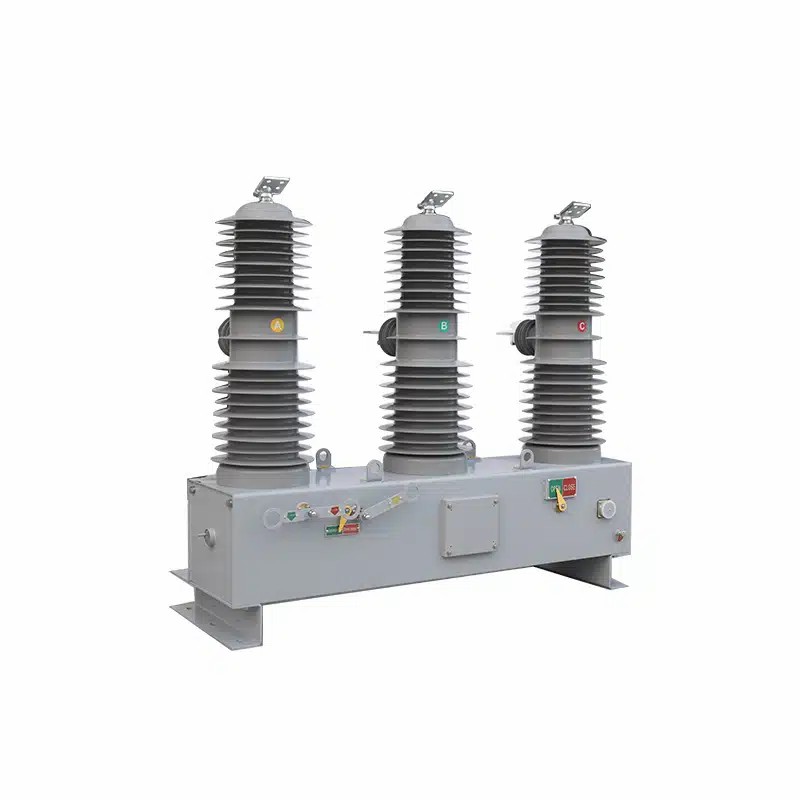

The ZW32 Outdoor Automatic Circuit Breaker Reclosing Switch is a solid insulated vacuum recloser designed for reliable and automatic fault management in medium voltage outdoor distribution networks. Combining robust insulation, vacuum interruption technology, and automatic reclosing functions, it ensures continuous power supply, safety, and low maintenance.

This comprehensive guide provides insights into transportation, installation, troubleshooting, and rapid deployment, making it essential for operators, engineers, and procurement teams.

Table of Contents

1. Overview of ZW32 Recloser

2. Key Features and Benefits

3. Transportation Requirements

4. Installation Conditions and Guidelines

5. Quick Installation Guide

6. Operational Principles

7. Maintenance and Inspection

8. Troubleshooting and Fault Repair

9. Safety Considerations

10. Certifications and Compliance

11. Conclusion

1. Overview of ZW32 Recloser

The ZW32 recloser is designed to operate in medium voltage outdoor environments, providing:

• Automatic Fault Detection and Reclosing: Reduces power outage duration.

• Solid Insulation: Enhances durability and reduces maintenance.

• Vacuum Interruption: Ensures arc-free switching and minimal wear.

• Compact Outdoor Design: Ideal for substations, industrial sites, and utility networks.

• IEC Compliance: Meets international safety and performance standards.

2. Key Features and Benefits

3. Transportation Requirements

Proper handling during shipping and transportation is essential to prevent damage. Key guidelines include:

3.1 Packaging

• Use strong wooden crates or metal frames.

• Include shock-absorbing materials to minimize vibration.

• Seal with moisture-proof materials to prevent corrosion.

3.2 Handling

• Use forklifts, cranes, or hoists with proper lifting points.

• Avoid tilting, dropping, or excessive force.

• Transport in upright position as specified in manufacturer manual.

3.3 Storage Before Installation

• Store in dry, ventilated area.

• Maintain ambient temperature between -10°C and +40°C.

• Avoid direct sunlight, rain, or dust accumulation.

4. Installation Conditions and Guidelines

4.1 Site Selection

• Ensure stable, level foundation for proper alignment.

• Maintain minimum clearance around equipment for operation and maintenance.

• Avoid areas with high vibration, corrosive gases, or flooding risks.

4.2 Environmental Requirements

4.3 Power Supply Considerations

• Ensure appropriate medium voltage line connection.

• Verify earthing/grounding systems according to IEC standards.

• Confirm protection devices (fuses, relays) are installed as recommended.

5. Quick Installation Guide

5.1 Tools and Equipment Needed

• Torque wrench and insulated tools

• Lifting equipment (crane/forklift)

• Level and measuring tape

• Personal Protective Equipment (PPE)

5.2 Installation Steps

1. Position the Recloser: Place on prepared foundation.

2. Secure with Anchor Bolts: Ensure cabinet is level and stable.

3. Connect Incoming and Outgoing Lines: Follow wiring diagram precisely.

4. Grounding Connection: Connect to earthing system according to standards.

5. Mechanical Operation Test: Verify smooth movement of switch and interlocks.

6. Electrical Testing: Perform insulation resistance, continuity, and control circuit checks.

7. Commissioning: Energize system and verify automatic reclosing functionality.

5.3 Installation Checklist

6. Operational Principles

The ZW32 recloser operates on automatic detection and reclosing principles:

1. Fault Detection: Current sensors identify short-circuit or overload conditions.

2. Trip Action: vacuum circuit breaker interrupts the fault current instantly.

3. Reclosing Action: Automatic reclosing restores power if the fault is temporary.

4. Lockout Mechanism: Prevents reclosing on persistent faults.

5. Manual Override: Allows operators to intervene if required.

7. Maintenance and Inspection

Routine maintenance ensures reliable operation and long service life:

7.1 Routine Maintenance Tasks

7.2 Preventive Measures

• Avoid exposure to moisture and dust.

• Tighten electrical connections regularly.

• Verify interlocks and safety devices are operational.

8. Troubleshooting and Fault Repair

9. Safety Considerations

• Always disconnect power before maintenance.

• Wear PPE including insulated gloves, safety glasses, and protective clothing.

• Avoid contact with live parts.

• Follow manufacturer manual and IEC standards.

• Ensure proper grounding/earthing is in place.

10. Certifications and Compliance

The ZW32 recloser complies with:

• IEC 62271-100: high voltage switchgear standard

• ISO 9001: Quality management certification

• CE Marking: Safety and environmental compliance

• RoHS Directive: Restriction of hazardous substances

• Optional local/national certifications depending on market requirements

The ZW32 Outdoor Automatic Circuit Breaker Reclosing Switch Solid Insulated Vacuum Recloser is a reliable, maintenance-friendly, and IEC-compliant solution for outdoor medium voltage power distribution. Its automatic reclosing, solid insulation, and vacuum technology ensure operational continuity, safety, and long-term durability.

Proper transportation, installation, and maintenance guarantee optimal performance, making it ideal for utility networks, industrial sites, and outdoor substations.
