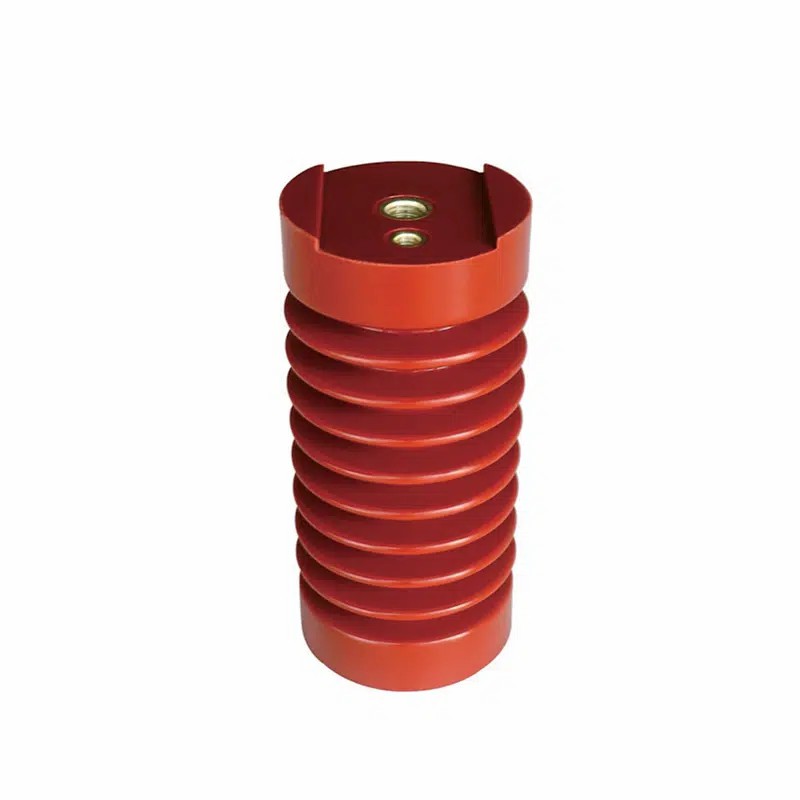

The CG109-12 12KV Insulator Sensor is a high-precision device engineered for voltage measurement in substations and switchgear systems. It features advanced capacitive sensing technology, durable epoxy resin insulation, and long-term operational reliability. The sensor provides accurate and safe monitoring of electrical networks, enabling predictive maintenance and optimal performance in industrial, utility, and renewable energy applications.

Its robust design ensures stability under harsh environmental conditions, while compact dimensions facilitate integration into modern switchgear and smart grid systems. This guide details technical specifications, installation requirements, maintenance practices, and application scenarios.

Google SEO Keywords

This content is optimized for the following keywords:

• CG109-12 12KV Insulator Sensor

• CG109-12 Insulator Sensor for Substation

• CG109-12 Insulator Sensor for Switchgear

• CG109-12 High Voltage Insulator Sensor

• CG109-12 12KV Switchgear Sensor

• CG109-12 Capacitive Sensor for Substation

• CG109-12 12KV Capacitive Insulator Sensor

• CG109-12 Switchgear Voltage Monitoring Sensor

• CG109-12 High Voltage Sensor for Electrical Systems

• CG109-12 Substation and Switchgear Sensor

Technical Specifications

Product Applications

The CG109-12 sensor is ideal for multiple electrical environments:

1. Substations

• Provides precise voltage measurement for operational safety.

• Compatible with monitoring and control systems.

• Supports predictive maintenance programs.

2. Medium and high voltage switchgear

• Enables continuous voltage monitoring and early fault detection.

• Minimizes downtime and operational risks.

• Integrates with modern smart grid technologies.

3. Industrial Power Systems

• Ensures stable power distribution in factories and manufacturing plants.

• Reduces risk of electrical failure in heavy-duty equipment.

4. Renewable Energy Installations

• Compatible with solar, wind, and hybrid energy systems.

• Facilitates energy optimization and monitoring of distributed power networks.

5. Smart Grid and IoT-enabled Networks

• Supports remote monitoring and automated reporting.

• Enhances system efficiency and reliability through real-time data collection.

Installation Conditions

Proper installation ensures optimal performance and long-term reliability:

1. Mounting Location

• Install in designated switchgear panels or substation enclosures.

• Avoid areas with excessive vibration or dust accumulation.

2. Orientation

• Align the sensor according to manufacturer guidelines.

• Ensure correct positioning for accurate voltage measurement.

3. Environmental Requirements

• Maintain operating temperature between -25°C and +55°C.

• Ensure relative humidity does not exceed 95%.

• Protect against direct sunlight, rain, and corrosive substances.

4. Electrical Connections

• Follow wiring diagrams provided in the manual.

• Verify terminal tightening to prevent loose connections.

5. Safety Precautions

• De-energize circuits before installation.

• Confirm grounding of the system.

• Use appropriate personal protective equipment (PPE).

Daily Maintenance

Routine maintenance maximizes sensor longevity and accuracy:

Visual Inspection

• Check for cracks, surface contamination, or epoxy discoloration.

• Ensure no accumulation of dust, moisture, or debris.

Electrical Testing

• Perform insulation resistance tests annually.

• Conduct partial discharge measurements every 2–3 years.

Cleaning

• Use a dry, lint-free cloth for surface cleaning.

• Avoid chemical cleaners that may degrade epoxy insulation.

Connection Verification

• Inspect terminal screws and mounting hardware periodically.

• Ensure stable electrical connections for accurate readings.

Maintenance Recommendations

• Scheduled Inspections: Perform comprehensive checks at least every 12 months.

• Calibration: Conduct voltage calibration annually or after significant maintenance work.

• Environmental Monitoring: Ensure the sensor environment remains within recommended temperature and humidity ranges.

• Fault Handling: In case of irregular readings, isolate the sensor and perform diagnostic testing.

Operational Guidelines

1. Startup Procedures

• Confirm installation orientation and connection integrity.

• Power the system and perform initial calibration.

• Log baseline voltage readings for monitoring reference.

2. Monitoring Procedures

• Use compatible meters or SCADA systems for continuous measurement.

• Set alert thresholds for overvoltage or undervoltage conditions.

• Document and review historical data for predictive maintenance.

3. Shutdown Procedures

• De-energize the sensor before disconnection.

• Follow manufacturer guidelines to safely remove and store the device.

Advantages of CG109-12

Troubleshooting and Common Issues

1. Abnormal Readings

• Check electrical connections and grounding.

• Verify calibration against reference voltages.

2. Surface Contamination

• Clean with dry, non-abrasive cloth.

• Avoid chemical solvents.

3. Environmental Effects

• Ensure temperature and humidity remain within recommended ranges.

• Relocate sensor if exposure exceeds limits.

4. Partial Discharge Detection

• Conduct diagnostic testing according to IEC 60270 standards.

• Replace sensor if partial discharge exceeds specification limits.

Customer Feedback

Users consistently highlight CG109-12’s reliability, ease of installation, and stable performance:

• Utilities: Appreciate accurate voltage monitoring and compatibility with SCADA systems.

• Industrial Facilities: Value epoxy resin durability and minimal maintenance requirements.

• Contractors: Note straightforward installation and retrofitting capability.

• Renewable Energy Operators: Emphasize smart grid integration and predictive maintenance support.

Sample Testimonial:
“CG109-12 provides reliable voltage measurement in our substation. Its low maintenance and precise readings have greatly improved our monitoring operations.” – Electrical Engineer, Europe

Conclusion

The CG109-12 12KV Insulator Sensor for Substation and Switchgear Applications combines precision, reliability, and environmental compliance to deliver superior voltage monitoring for a variety of power systems. With advanced capacitive technology, robust epoxy resin insulation, and compatibility with modern SCADA and IoT systems, it ensures:

• Safe and accurate voltage detection

• Long-term operational reliability

• Low maintenance and minimal downtime

• Seamless integration into substations, switchgear, and industrial power networks

The CG109-12 is an ideal solution for utilities, industrial facilities, renewable energy installations, and contractors seeking high-performance, reliable, and eco-friendly voltage monitoring.
