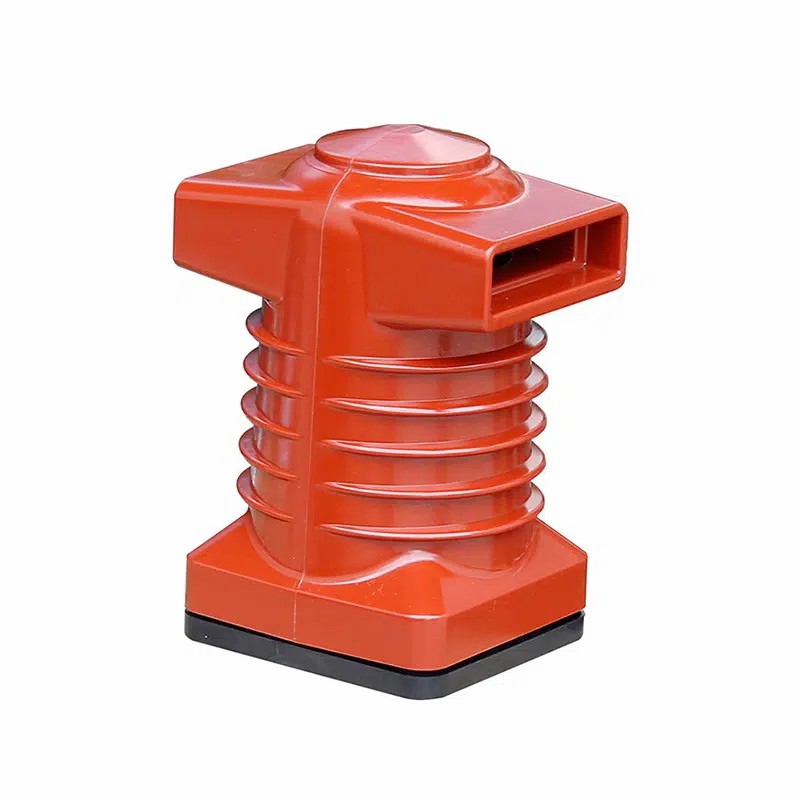

The CH11-12-150 12kV Three-Way contact box Electrical Insulation Insulator is a high-performance component engineered for high and medium voltage switchgear systems. Combining robust electrical insulation, precision three-way connectivity, and long-term durability, it ensures safe and Efficient Power Distribution in industrial, commercial, and utility applications.

This guide provides a comprehensive overview of the CH11-12-150 Contact Box, covering usage methods, upgrade maintenance plans, environmental performance, and product highlights. It is designed for engineers, maintenance personnel, and procurement specialists seeking detailed technical information and practical guidance.

Product Overview

The CH11-12-150 is designed to meet the demanding requirements of modern electrical systems. Its insulator-based construction enhances safety while ensuring reliable three-way connectivity. Key features include:

• 12kV Voltage Rating: Suitable for high and medium voltage systems.

• Three-Way Design: Allows flexible connection routing.

• Robust Electrical Insulation: Protects against voltage surges and short circuits.

• Durable Materials: Resistant to mechanical stress, environmental conditions, and thermal fluctuations.

• Easy Integration: Compatible with standard switchgear layouts.

Application Areas

The CH11-12-150 Contact Box is versatile and widely applicable:

1. Industrial Facilities

Used in factories and plants for reliable power distribution and three-way connectivity in high and medium voltage circuits.

2. Power Substations

Ideal for high voltage switchgear in substations, ensuring secure connections and efficient operation.

3. Commercial Complexes

Ensures safe and stable electricity distribution in large commercial buildings, hospitals, and office complexes.

4. Renewable Energy Systems

Applied in solar and wind power installations, providing reliable insulation and robust connectivity.

5. Transportation Infrastructure

Supports railways, subways, and other transport systems where high voltage switchgear reliability is critical.

Usage Methods

Proper usage of the CH11-12-150 Contact Box ensures optimal performance and longevity.

Installation Guidelines

1. Pre-Installation Checks: Inspect for any physical damage and confirm system de-energization.

2. Alignment: Position the contact box accurately within the switchgear or panel.

3. Connection: Secure the three-way terminals with appropriate torque to ensure reliable electrical contact.

4. Verification: Perform insulation resistance and continuity tests before energizing the system.

Operational Tips

• Avoid exceeding voltage or current ratings.

• Keep the contact box free from dust, moisture, and chemical contaminants.

• Monitor for unusual heating, sparks, or vibration during operation.

• Use PPE (insulating gloves, safety glasses, protective clothing) during installation and maintenance.

Upgrade Maintenance Plan

A structured maintenance plan ensures system reliability and longevity.

Routine Maintenance

Advanced Maintenance

• Component Replacement: Replace worn or damaged parts immediately to prevent failures.

• Environmental Protection Measures: Apply protective coatings if exposed to moisture or corrosive conditions.

• Performance Upgrades: Upgrade to higher-grade materials or additional insulation as needed for extreme operating environments.

Environmental Performance

The CH11-12-150 Contact Box is designed with sustainability and environmental safety in mind:

• Eco-Friendly Insulation Materials: Made from epoxy resin that complies with global environmental standards.

• Reduced Energy Loss: High-efficiency insulation minimizes leakage current and reduces energy waste.

• Durable Construction: Long service life reduces the need for replacements, lowering material waste.

• Non-Toxic Materials: Free from hazardous substances, ensuring safe disposal at the end of life.

• Compliance: Meets international environmental standards for electrical equipment.

Product Highlights

The CH11-12-150 Contact Box stands out in the market due to its combination of technical performance, reliability, and safety features:

1. High Dielectric Strength: Ensures resistance to high voltage surges.

2. Three-Way Connectivity: Allows versatile routing for complex switchgear configurations.

3. Thermal Stability: Operates reliably under temperatures ranging from -40°C to +120°C.

4. Mechanical Robustness: Resistant to shocks, vibration, and mechanical stress.

5. Easy Integration: Compatible with standard switchgear and panel layouts.

6. Maintenance-Friendly Design: Simplifies cleaning, inspection, and part replacement.

7. Global Standard Compliance: Meets IEC 62271 and other international switchgear standards.

Inspection and Testing Standards

To ensure Safe Operation, the CH11-12-150 undergoes rigorous testing:

Troubleshooting Guidelines

Common operational issues and solutions include:

Safety Considerations

Working with high and medium voltage switchgear requires strict adherence to safety protocols:

• PPE: Use insulating gloves, goggles, and protective clothing.

• De-Energization: Always disconnect power before installation or maintenance.

• Qualified Personnel: Only trained engineers and technicians should handle repairs or maintenance.

• Insulated Tools: Ensure tools are rated for HV/MV operations.

• Emergency Procedures: Familiarize all personnel with shutdown and isolation protocols.

The CH11-12-150 12kV Three-Way Contact Box Electrical Insulation Insulator is a high-quality solution for reliable and safe power distribution. With superior insulation, versatile three-way connectivity, and robust construction, it ensures consistent performance in industrial, commercial, and utility applications.

By following proper usage methods, upgrade maintenance plans, environmental practices, and inspection standards, users can maximize safety, efficiency, and operational lifespan. The CH11-12-150 Contact Box delivers:

• Reliable electrical insulation and connectivity

• Long-term durability in extreme environments

• Easy integration with high and medium voltage switchgear

• Compliance with global safety and environmental standards

• Reduced maintenance and operational downtime

Investing in CH11-12-150 ensures optimal performance, safety, and sustainability for modern electrical systems.
