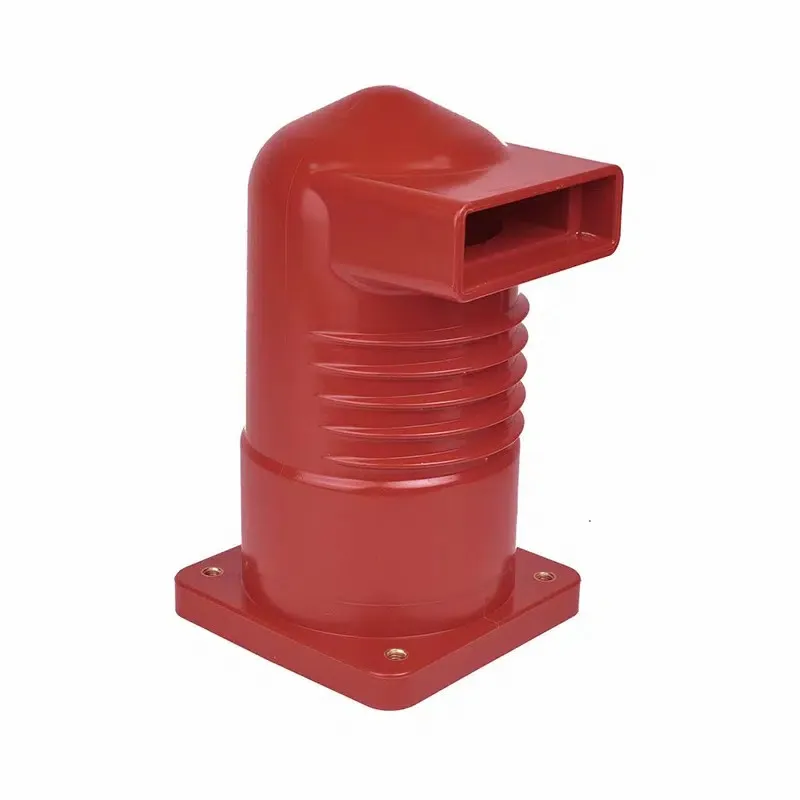

The CH10-12-150 12KV Two Holes contact box is a premium electrical component designed for high and medium voltage switchgear systems. Engineered for durability, safety, and precise electrical connectivity, this contact box ensures reliable operation in industrial, commercial, and utility applications.

This comprehensive guide provides detailed information for users, maintenance personnel, and technical buyers, covering user guidelines, maintenance procedures, quality inspection standards, and customer feedback. Designed with professional clarity, this content is suitable for official websites, B2B platforms, and technical catalogs.

Product Overview

The CH10-12-150 Contact Box is designed to meet rigorous electrical and mechanical performance standards. Key features include:

• 12KV Voltage Rating: Reliable for high and medium voltage circuits.

• Two Holes Design: Facilitates secure installation and flexible connections.

• High-Grade Insulation: Ensures electrical safety and prevents short circuits.

• Durable Construction: Resistant to vibration, mechanical stress, and environmental conditions.

• Switchgear Compatibility: Designed for seamless integration into standard switchgear systems.

Application Areas

The CH10-12-150 Contact Box is widely applicable across multiple sectors:

1. Industrial Plants

Used in manufacturing facilities for reliable power distribution and high-voltage connectivity.

2. Power Substations

Ensures safe and stable electrical connections for medium and High Voltage systems.

3. Commercial Complexes

Applied in office buildings, hospitals, and shopping centers to maintain reliable electricity supply.

4. Renewable Energy Installations

Suitable for solar and wind Power Systems requiring dependable switchgear connectivity.

5. Transportation Systems

Supports railways, subways, and other transport infrastructure with high-voltage switchgear applications.

User Guide

Proper usage of the CH10-12-150 Contact Box is essential for safety and performance.

Pre-Installation Checks

• Inspect the contact box for cracks, dirt, or damage.

• Ensure the switchgear is fully de-energized before installation.

• Confirm that all necessary tools and PPE are available.

Installation Steps

1. Positioning: Align the contact box with mounting points on the switchgear.

2. Securing: Insert the two-hole terminals and tighten to manufacturer-recommended torque specifications.

3. Connection: Attach incoming and outgoing conductors carefully to prevent loose contacts.

4. Verification: Perform insulation and continuity tests before energizing.

Operational Tips

• Avoid exceeding the rated voltage or current.

• Keep the component and surrounding area free from moisture and contaminants.

• Regularly monitor for unusual noise, heat, or electrical arcing.

• Use proper PPE during handling, installation, and maintenance.

Maintenance and Care

Regular maintenance is crucial to extend the life and ensure reliable performance of the CH10-12-150 Contact Box.

Maintenance Frequency

Maintenance Procedures

• Cleaning: Remove dust and debris using soft brushes or compressed air; avoid harsh chemicals.

• Torque Verification: Use calibrated tools to ensure terminal bolts are tight.

• Electrical Testing: Perform insulation resistance and continuity checks.

• Replacement: Replace worn or damaged parts immediately to prevent system failures.

• Environmental Protection: Apply protective coatings in high-humidity or corrosive environments.

Quality Inspection Report

The CH10-12-150 Contact Box undergoes stringent testing to ensure compliance with international standards.

Inspection Summary:
All CH10-12-150 units pass strict electrical, mechanical, and thermal tests. Units are marked with serial numbers for traceability, ensuring consistent quality across production batches.

Customer Feedback and Reviews

Customer experiences highlight the reliability, performance, and ease of use of the CH10-12-150 Contact Box.

Industrial Customers

• Report stable operation in heavy manufacturing environments.

• Appreciate robust construction that minimizes downtime.

Commercial Sector Users

• Highlight easy installation and secure two-hole design.

• Note consistent performance across high-rise and large commercial buildings.

Utility Companies

• Emphasize reliability for medium and high voltage distribution.

• Positive feedback on maintenance-friendly design and longevity.

Sample Customer Quote:
"The CH10-12-150 Contact Box has transformed our switchgear reliability. Installation was straightforward, and the insulation quality ensures Safe Operation even under heavy load." – Electrical Engineer, Power Utility

Troubleshooting Guide

Safety Guidelines

Working with high voltage systems requires strict adherence to safety protocols:

• Personal Protective Equipment (PPE): Wear insulating gloves, goggles, and protective clothing.

• De-Energization: Always ensure the switchgear is fully powered down before work.

• Qualified Personnel: Only trained engineers and technicians should handle installation or maintenance.

• Insulated Tools: Use tools rated for high and medium voltage applications.

• Emergency Procedures: Understand shutdown and isolation protocols in case of faults.

Advantages of CH10-12-150 Contact Box

1. Reliable Connectivity: Dual-hole design ensures secure and flexible installation.

2. High-Quality Insulation: Protects against voltage surges and short circuits.

3. Durable Construction: Resistant to vibration, environmental factors, and thermal fluctuations.

4. Maintenance-Friendly: Simplifies cleaning, inspection, and part replacement.

5. Global Standards Compliance: Meets IEC 62271 and other international switchgear standards.

The CH10-12-150 12KV Two Holes Contact Box is an essential component for modern high and medium voltage switchgear systems. By adhering to proper user guidelines, maintenance schedules, and inspection standards, users can achieve:

• Reliable electrical connectivity

• Long-term durability in diverse environments

• Reduced operational downtime

• Compliance with international safety and quality standards

The combination of robust insulation, dual-hole design, and ease of maintenance makes CH10-12-150 ideal for industrial, commercial, and utility applications, ensuring safe and efficient electrical distribution.
