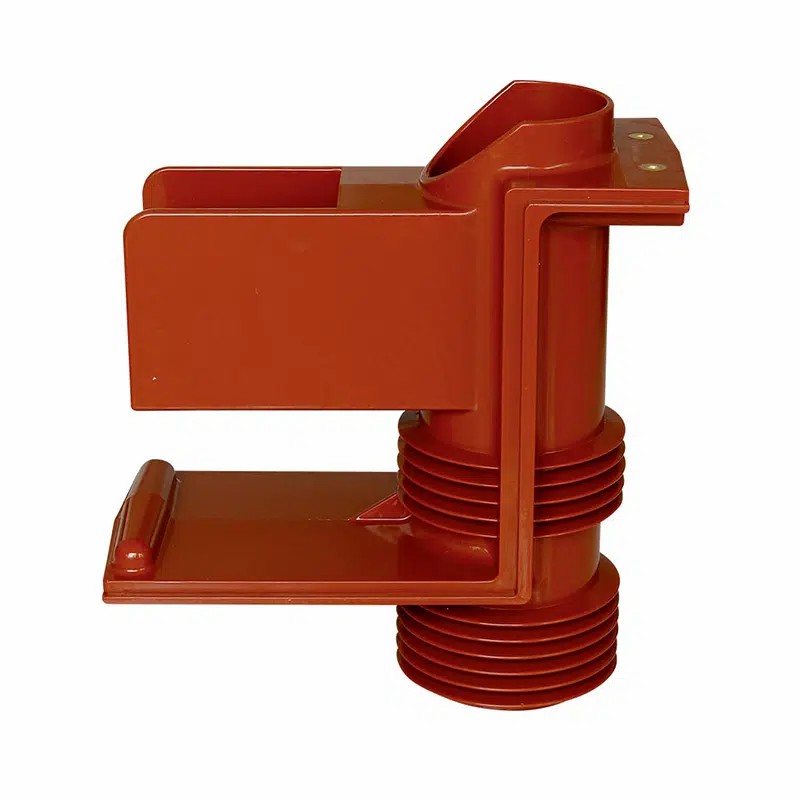

The CH3A-40.5 40.5KV Epoxy Resin High Voltage Electrical Insulation contact box for Switchgear ABB is an advanced electrical insulation component specifically designed for high-voltage switchgear applications. Manufactured with industrial-grade epoxy resin, it provides superior dielectric performance, exceptional mechanical strength, and reliable long-term operation under harsh electrical and environmental conditions.

As the demand for stable and safe high-voltage solutions increases, the CH3A-40.5 plays a crucial role in ensuring seamless operation of switchgear in power generation plants, substations, heavy industry, and utility grids worldwide. This product is engineered to comply with international electrical standards and integrates seamlessly with ABB switchgear systems, offering excellent compatibility and reliability.

Key Features of CH3A-40.5 Contact Box

• Rated Voltage: 40.5KV

• Material: High-purity epoxy resin

• Function: Provides insulation and mechanical support in switchgear

• Applications: ABB switchgear, substations, transmission & distribution networks

• Safety Standards: IEC, GB, and RoHS compliant

• Advantages: High dielectric strength, flame retardant, excellent thermal stability, corrosion resistance

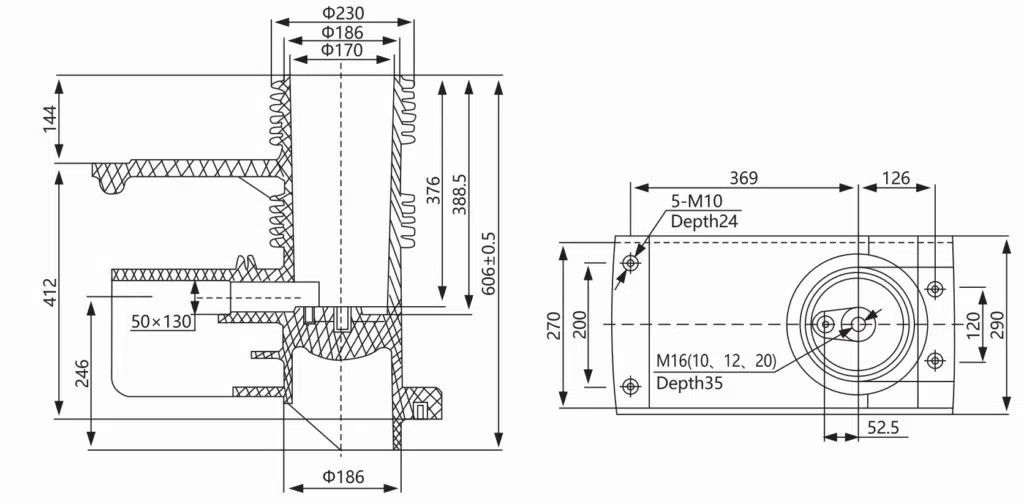

Technical Specifications

The following table provides detailed specifications for the CH3A-40.5 40.5KV Epoxy Resin High Voltage Contact Box:

Packaging Specifications

To ensure safety during shipping and storage, the CH3A-40.5 contact box is packed with international-standard protective materials.

This multi-layer packaging ensures mechanical protection, moisture prevention, and impact resistance during sea freight, air shipment, or land transportation.

Storage Conditions

To maintain product quality and extend service life, proper storage of the CH3A-40.5 contact box is essential:

• Temperature: Store in a controlled environment between 5°C – 40°C.

• Humidity: Maintain ≤ 75% relative humidity.

• Sunlight: Avoid direct exposure to UV rays or heat sources.

• Dust Protection: Keep in sealed packaging until installation to avoid contamination.

• Stacking Limitations: Do not exceed recommended stacking height to prevent deformation.

• Shelf Life: Recommended usage within 24 months of manufacturing date for optimal performance.

Environmental Standards

The CH3A-40.5 Epoxy Resin High Voltage Contact Box complies with global environmental and safety regulations, ensuring that the product is not only reliable but also sustainable:

• RoHS Compliance: Free from hazardous substances such as lead, cadmium, and mercury.

• REACH Standard: Conforms to EU chemical safety requirements.

• Halogen-Free: Manufactured without halogenated flame retardants, reducing toxic emissions.

• ISO14001 Certification: Production facilities comply with strict environmental management systems.

• Sustainable Resin Materials: Epoxy resin is optimized for recyclability and eco-friendly disposal.

By adhering to these standards, the CH3A-40.5 contact box meets the requirements of international markets and supports green energy initiatives.

Technical Support and Services

To maximize performance and reliability, professional technical support is provided for all customers:

1. Installation Guidance

• Detailed installation manuals provided with each shipment.

• Remote technical consultation via email or video call.

• On-site training available for large-scale switchgear projects.

2. Maintenance Support

• Regular inspection guidelines to ensure insulation quality.

• Recommendations for cleaning and handling epoxy resin surfaces.

• Diagnostic troubleshooting support for high-voltage switchgear systems.

3. Spare Parts & Replacement

• Availability of standard CH3A-40.5 spare units.

• Flexible supply options for OEM customization.

• Fast delivery system for urgent replacement needs.

4. After-Sales Service

• 24/7 technical assistance.

• Warranty coverage for manufacturing defects.

• Long-term customer service agreements for industrial clients.

Applications

The CH3A-40.5 40.5KV Epoxy Resin Contact Box is widely applied in:

• ABB Switchgear Systems

• Power Plants and Substations

• Transmission and Distribution Grids

• Heavy Industrial Equipment

• Renewable Energy Power Systems

Its high dielectric performance and structural integrity make it ideal for environments requiring long-term reliability.

Maintenance Recommendations

Although epoxy resin is highly durable, preventive maintenance ensures maximum lifespan:

1. Visual Inspection: Check for cracks, surface contamination, or discoloration every 6 months.

2. Electrical Testing: Conduct insulation resistance tests annually.

3. Cleaning: Wipe with dry cloth or non-corrosive solvents; avoid water exposure.

4. Replacement Cycle: For heavy-duty applications, replace every 15–20 years, depending on usage conditions.

Customer Feedback

Clients worldwide have recognized the CH3A-40.5 contact box for its stability, compatibility, and long service life. Positive feedback highlights:

• Excellent compatibility with ABB switchgear.

• Reliable insulation in high-humidity and high-dust environments.

• Cost-effective compared to alternatives with similar ratings.

• Minimal maintenance requirements.

Upgrade and Maintenance Plans

To support long-term infrastructure planning, upgrade and maintenance programs are available:

• Annual Maintenance Contracts (AMC) for industrial clients.

• Performance Upgrade Kits with improved resin formulations.

• Lifecycle Management Plans aligned with customer switchgear systems.

The CH3A-40.5 40.5KV Epoxy Resin High Voltage Electrical Insulation Contact Box for Switchgear ABB is a highly reliable and durable insulation solution for high-voltage applications. With robust packaging, eco-friendly compliance, excellent storage stability, and professional technical support, it stands as an essential component in global switchgear systems.

By integrating advanced epoxy resin technology with strict quality standards, this product not only ensures long-term safety and reliability but also supports sustainable energy development.
