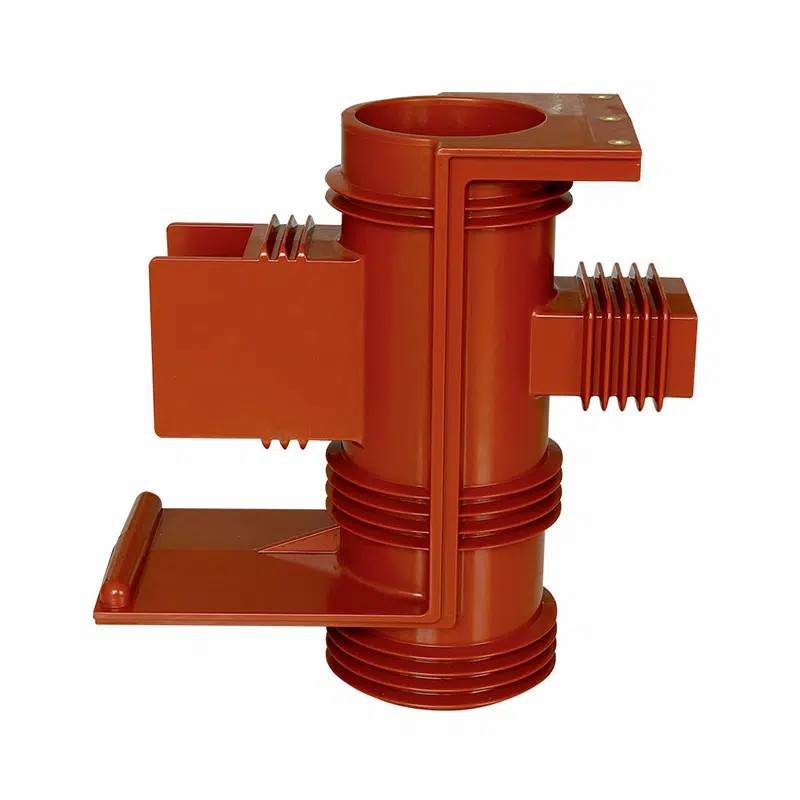

The CH2A-40.5 40.5KV High Voltage Indoor Red Epoxy Resin contact box is a highly specialized electrical component designed to ensure safe, reliable, and durable performance in high-voltage systems. With its robust construction, superior insulation properties, and long-lasting durability, this contact box has become a critical part of switchgear and indoor electrical installations.

Manufactured from premium epoxy resin, the CH2A-40.5 contact box guarantees electrical insulation, thermal stability, and mechanical strength even in demanding environments. Its applications span across power distribution networks, industrial switchgear systems, substations, and electrical control equipment, providing vital protection for critical high-voltage components.

This document will provide a detailed overview of its applicable scope, core advantages, product benefits, and design philosophy, enabling engineers, procurement specialists, and industrial decision-makers to understand why this product is a reliable choice for long-term deployment.

Table of Specifications

Applicable Scope of CH2A-40.5

The CH2A-40.5 40.5KV Contact Box is suitable for a wide range of electrical systems where high-voltage insulation and mechanical durability are essential.

1. Power Distribution Systems

• Used in medium and high-voltage switchgear for safe electrical operation.

• Provides insulation between conductive components, preventing short circuits.

2. Industrial Facilities

• Installed in heavy industries such as steel, cement, mining, and petrochemicals, where high-voltage equipment operates continuously.

• Protects sensitive switchgear and ensures uninterrupted production.

3. Substations and Utilities

• Suitable for 40.5KV substations, distribution lines, and control rooms.

• Provides stability and insulation in compact indoor environments.

4. Renewable Energy Systems

• Applied in wind power plants, solar farms, and hydroelectric facilities to safeguard control equipment from high-voltage fluctuations.

5. Transportation and Infrastructure

• Used in railway electrical systems and urban transit power supply where stable insulation is vital for public safety.

Core Advantages

The CH2A-40.5 40.5KV Epoxy Resin Contact Box offers a wide range of technical and functional advantages:

1. Electrical Insulation Excellence

• Manufactured from high-purity epoxy resin, it delivers superior dielectric strength.

• Prevents leakage current, arcing, and breakdown under high voltage.

2. Mechanical Durability

• Withstands mechanical stress, vibrations, and thermal expansion during operation.

• Resistant to cracks, deformation, and wear over extended usage.

3. Thermal Stability

• Operates reliably under high temperatures without degradation.

• Suitable for indoor switchgear with high current loads.

4. Moisture Resistance

• Epoxy resin prevents moisture absorption, ensuring stable insulation even in humid environments.

5. Compatibility with ABB Switchgear

• Specifically designed for 40.5KV indoor ABB-type switchgear.

• Ensures easy installation and long-term compatibility.

Product Advantages in Real Applications

The CH2A-40.5 goes beyond standard specifications, offering practical benefits in industrial and utility applications.

1. Enhanced Safety

• Reduces risks of short circuits, electrical faults, and equipment failure.

• Provides consistent protection for both personnel and equipment.

2. Longevity and Reliability

• Tested for extended life cycles, ensuring stable insulation performance for decades.

• Resistant to environmental degradation such as oxidation and UV exposure.

3. Low Maintenance Requirements

• Once installed, requires minimal maintenance compared to traditional insulation materials.

• Saves operational costs for utilities and industries.

4. Cost-Effective Solution

• Provides long-term savings due to reduced replacement and maintenance needs.

• High performance per unit cost, making it ideal for bulk procurement.

Design Philosophy of CH2A-40.5

The design of the CH2A-40.5 40.5KV High Voltage Indoor Red Epoxy Resin Contact Box focuses on safety, reliability, and innovation.

1. Material Innovation

• Uses industrial-grade epoxy resin with enhanced insulation properties.

• Reinforced with fillers to increase mechanical strength and heat resistance.

2. Ergonomic Engineering

• Compact design fits seamlessly into indoor switchgear assemblies.

• Lightweight for ease of installation without compromising durability.

3. Environmental Considerations

• Designed to meet international environmental and safety standards.

• Free from hazardous materials, ensuring safe disposal and recyclability.

4. Customization Potential

• Can be adapted for specific client requirements in terms of size, shape, or voltage adaptation.

• Offers flexibility for OEMs and switchgear manufacturers.

Comparative Analysis: Epoxy Resin vs Traditional Materials

Packaging and Delivery

• Packaging Method: Foam-protected, anti-static, and moisture-resistant sealed cartons.

• Export Packaging: Compliant with international shipping standards for sea and air freight.

• Delivery Time: Standard lead time 15–25 working days, depending on order volume.

• Labeling: Clear product model, voltage rating, and safety handling instructions.

Customer Value and Global Demand

Why Customers Choose CH2A-40.5

• Proven track record of reliability in global high-voltage installations.

• Supports OEM partnerships with switchgear manufacturers.

• Designed to meet international utility standards.

Global Demand

• High adoption in Asia, Europe, Middle East, and Africa.

• Growing demand in renewable energy and smart grid applications.

The CH2A-40.5 40.5KV High Voltage Indoor Red Epoxy Resin Contact Box Electrical Insulation Durable High Voltage Components is not just a product—it is a solution for reliability, safety, and efficiency in modern high-voltage systems.

With its broad application scope, superior insulation, mechanical durability, and eco-friendly design, it is the ideal choice for power utilities, industrial switchgear, and renewable energy installations.

By integrating innovative materials and design philosophy, this product provides long-term operational stability, reduced maintenance, and cost efficiency—making it a strategic investment for any organization involved in high-voltage Power Systems.
