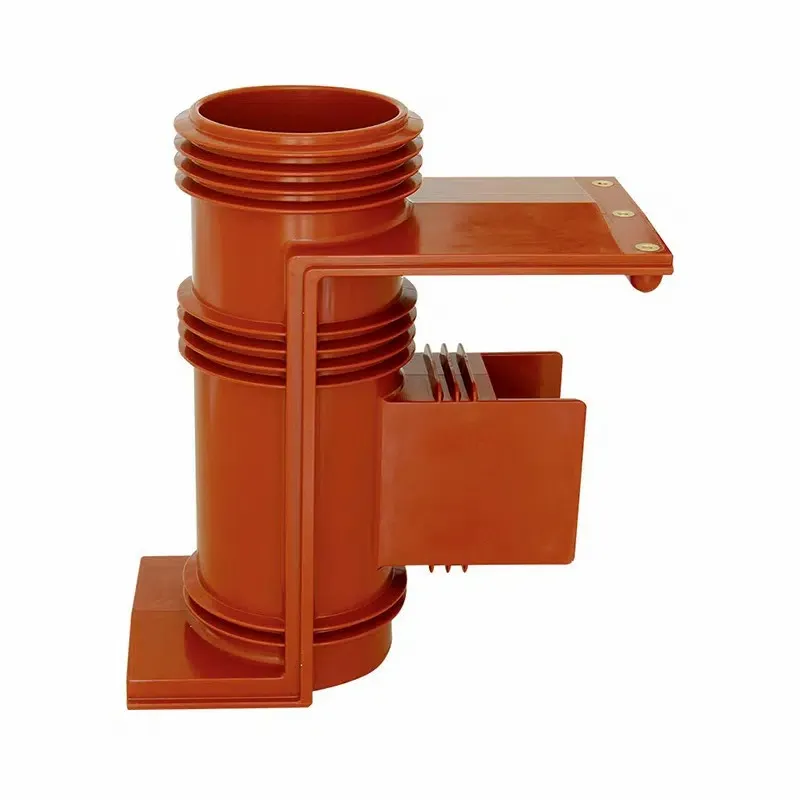

The CH1A-40.5 40.5KV High Voltage contact box Insulator is a critical component in medium to high-voltage electrical systems. Engineered for reliability, durability, and safety, this contact box ensures stable insulation and efficient current conduction in switchgear systems. Its three-way dual hole design offers versatile connectivity, making it suitable for complex power distribution networks and industrial applications.

This product is crafted using high-quality epoxy resin, providing superior dielectric strength and resistance to mechanical and environmental stress. As a reliable high-voltage insulator, it plays a vital role in maintaining operational safety and minimizing downtime in electrical equipment.

Product Features

The CH1A-40.5 contact box combines innovative engineering with robust materials. Key features include:

• Voltage Rating: 40.5KV, suitable for high-voltage systems

• Material: Industrial-grade epoxy resin for electrical insulation

• Design: Three-way dual hole configuration for flexible installation

• Mechanical Strength: High impact and compressive resistance

• Durability: Excellent resistance to environmental factors like humidity and temperature fluctuations

• Safety: Minimizes risk of leakage and electrical faults

Product Certifications

Ensuring safety and compliance in electrical applications is essential. The CH1A-40.5 contact box meets multiple international standards and certifications:

These certifications confirm the CH1A-40.5 contact box is safe, reliable, and environmentally responsible, making it suitable for global electrical applications.

Structure and Design Overview

Understanding the structure of the CH1A-40.5 contact box is critical for proper installation and maintenance. The main structural components include:

1. Epoxy Resin Housing:
   Provides mechanical support and high electrical insulation. The epoxy resin is molded precisely to accommodate high voltage stress and minimize electrical leakage.

2. Three-Way Dual Hole Configuration:
   Allows for flexible connection points in the switchgear system, enabling multiple circuits to interface efficiently.

3. Conductive Inserts:
   Made of high-conductivity copper or aluminum, these inserts ensure optimal electrical performance.

4. Sealing Elements:
   Silicone or rubber seals maintain airtight conditions and prevent moisture ingress, protecting the internal components from corrosion and environmental damage.

5. Mounting Brackets and Supports:
   Enable secure integration into switchgear panels, reducing mechanical stress and ensuring long-term stability.

Applications and Suitable Use Cases

The CH1A-40.5 40.5KV contact box is versatile, serving multiple industries and applications:

• Power Distribution Substations: Ensures reliable insulation in high-voltage switchgear panels.

• Industrial Facilities: Maintains electrical safety in factories and manufacturing plants.

• Renewable Energy Systems: Supports high-voltage insulation in wind and solar power setups.

• Commercial Buildings: Provides durable electrical infrastructure for large commercial complexes.

• Utility Companies: Enhances maintenance and reliability of power grids.

Technical Specifications

These specifications highlight the product’s high-performance characteristics, ensuring safe and efficient operation in demanding electrical environments.

Installation Guidelines

Proper installation is critical for maximizing the lifespan and performance of the CH1A-40.5 contact box. Key considerations include:

1. Site Preparation: Ensure the installation area is dry, clean, and free of dust or conductive debris.

2. Mounting: Align the contact box using the provided brackets and secure firmly to the switchgear panel.

3. Connection: Insert conductive wires into the dual holes according to the wiring diagram, ensuring tight and stable contacts.

4. Insulation Check: Verify dielectric strength with a megger or insulation tester to prevent leakage.

5. Environmental Protection: Use additional seals if the installation site is prone to moisture or dust ingress.

Maintenance Guidelines

Regular maintenance enhances safety and prolongs the service life of the contact box:

• Visual Inspection: Check for cracks, discoloration, or physical damage to the epoxy housing.

• Electrical Testing: Conduct insulation resistance tests periodically to detect early signs of deterioration.

• Cleaning: Use dry, lint-free cloths to remove dust; avoid water or chemical solvents.

• Tightening Connections: Ensure all screws, bolts, and inserts remain secure to maintain proper conductivity.

• Replacement Schedule: Components showing wear or insulation degradation should be replaced promptly.

Advantages of CH1A-40.5 Contact Box

The CH1A-40.5 contact box offers several benefits:

• High Reliability: Maintains insulation under high-voltage stress.

• Versatile Design: Three-way dual hole configuration supports complex wiring setups.

• Durable Material: Epoxy resin resists environmental factors and mechanical damage.

• Global Compliance: Meets IEC, ISO, and UL standards.

• Cost-Effective Maintenance: Reduced downtime due to long-lasting components.

• Safety-Oriented: Minimizes electrical faults and potential hazards in switchgear systems.

Customer Reviews

Customers report high satisfaction with the CH1A-40.5 contact box:

• Electrical Contractors: Praise its reliability and easy integration into switchgear panels.

• Industrial Users: Appreciate the durability under harsh environmental conditions.

• Utility Companies: Note improved operational safety and reduced maintenance frequency.

Positive feedback highlights the combination of robust design, flexible installation, and adherence to international safety standards.

Environmental Considerations

The CH1A-40.5 contact box is designed with sustainability in mind:

• RoHS Compliant: Free from harmful chemicals.

• Epoxy Resin Efficiency: Minimizes material waste during production.

• Durable Lifecycle: Long operational life reduces replacement frequency and environmental impact.

• Recyclability: Components can be processed according to standard recycling protocols.

The CH1A-40.5 40.5KV High Voltage Contact Box Insulator Switchgear Three Way Dual Hole is a highly reliable, durable, and efficient solution for indoor switchgear systems. With superior insulation, robust epoxy resin construction, and flexible three-way dual hole design, it ensures safe, stable, and long-lasting performance. Certified to international standards and compatible with a wide range of applications, it is an ideal choice for industrial, utility, and commercial high-voltage electrical systems.
