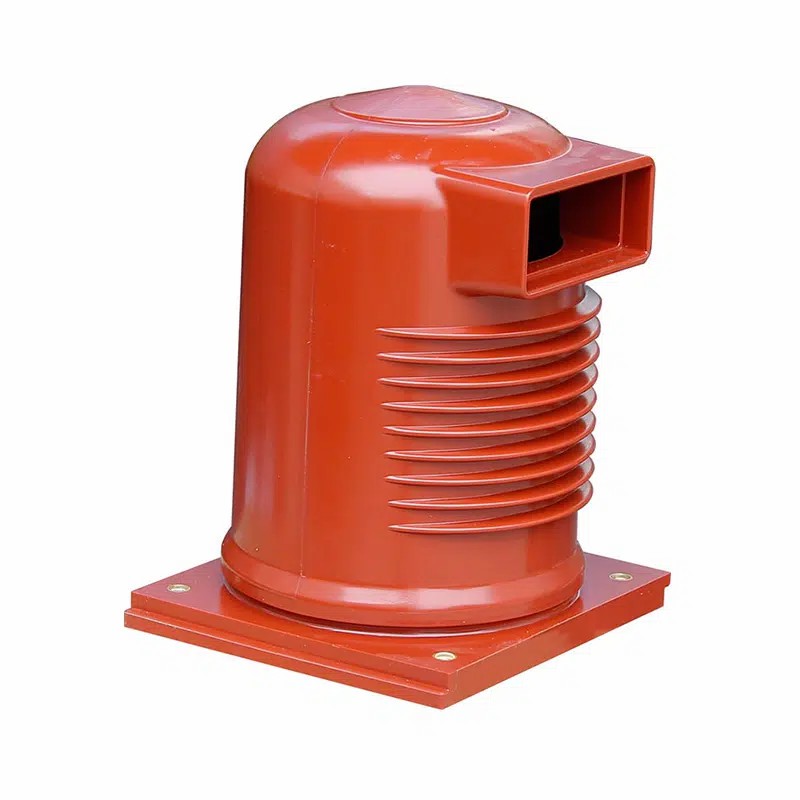

The CH1A-40.5 40.5KV High Voltage contact box Insulator Switchgear Three Way Dual Hole is an advanced electrical component designed for high-voltage switchgear applications. Built with premium industrial epoxy resin, this contact box ensures superior insulation, durability, and long-term reliability in industrial, commercial, and utility Power Systems. Its three-way dual hole design allows for flexible connections, making it a key component in modern electrical distribution networks.

This article explores the product’s safety instructions, certifications, performance features, and cleaning methods, providing a comprehensive guide for engineers, technicians, and procurement specialists. The content is optimized for Google SEO, structured for clarity, and designed to enhance understanding and usability for international B2B platforms.

Safety Instructions

General Safety Guidelines

High-voltage equipment such as the CH1A-40.5 contact box requires strict adherence to safety standards:

• Always disconnect power supply before installation or maintenance.

• Wear insulated gloves and safety footwear when handling high-voltage components.

• Avoid exposure to moisture, as water may compromise insulation integrity.

• Keep the contact box away from flammable materials.

• Ensure proper grounding to prevent electrical hazards.

Installation Safety

During installation, the following steps must be strictly followed:

1. Verify the voltage rating of the system before connecting the contact box.

2. Use precision tools to avoid damaging the epoxy resin housing.

3. Inspect for cracks, chips, or defects before installation.

4. Confirm alignment with switchgear busbars to prevent arcing.

5. Maintain a safe working distance according to high-voltage safety codes.

Operational Safety

To ensure Safe Operation:

• Conduct regular inspections for signs of wear or degradation.

• Monitor for overheating or unusual noises.

• Replace the contact box if any insulation breakdown is detected.

• Avoid improper connections or overloads that exceed the rated voltage.

Product Certification

The CH1A-40.5 contact box meets multiple international standards, guaranteeing reliability and compliance for global markets.

These certifications ensure the contact box is manufactured under strict quality controls and is suitable for industrial and commercial applications worldwide.

Performance Features

Insulation Properties

The CH1A-40.5 contact box is made from industrial-grade epoxy resin, which provides:

• High dielectric strength

• Excellent mechanical stability under high voltage

• Resistance to moisture, chemicals, and temperature variations

Structural Design

The three-way dual hole configuration allows:

• Multiple connection points for flexible electrical routing

• Efficient integration with different switchgear layouts

• Reduced risk of electrical arcing due to precise spacing

Durability

Designed for long-term use, the contact box offers:

• High impact resistance

• Resistance to thermal stress

• Extended operational life under continuous high-voltage conditions

Efficiency

Optimized for performance, the contact box supports:

• Stable electrical conductivity

• Minimal energy loss due to efficient insulation

• Simplified maintenance and replacement

Cleaning and Maintenance Methods

Proper maintenance ensures long-term functionality and safety.

Cleaning Materials

Use non-conductive, soft cloths or brushes and mild, non-abrasive cleaning agents. Avoid solvents that may damage epoxy resin.

Cleaning Procedure

1. Disconnect the contact box from the power system.

2. Wipe the surface gently with a soft cloth dampened with distilled water or approved cleaning solution.

3. Ensure all dust and debris are removed from the three-way dual holes.

4. Dry completely before reconnecting to prevent moisture-related issues.

Periodic Maintenance

• Conduct quarterly inspections for cracks, discoloration, or residue buildup.

• Test insulation resistance using a megohmmeter to ensure compliance with rated voltage.

• Replace any component showing signs of degradation to prevent electrical failure.

Applications and Use Cases

The CH1A-40.5 contact box is widely applied in:

• Industrial power distribution systems

• Utility substations and switchgear assemblies

• Commercial high-rise buildings requiring stable electrical insulation

• Renewable energy integration, including solar and wind systems

Packaging and Logistics

Proper packaging ensures safe transport:

Customer Reviews

Positive Feedback

• Industrial engineers highlight the durability and safety features.

• Maintenance teams praise ease of cleaning and inspection.

• Procurement managers note consistent quality and international certification compliance.

Suggested Improvements

• Some clients recommend additional installation guides for new technicians.

• Optional pre-drilled connection templates could reduce installation time.

Upgrade and Replacement Plans

To maintain optimal performance:

• Schedule annual inspections with certified technicians.

• Replace any epoxy components showing stress or degradation.

• Integrate upgraded high-voltage insulation modules in complex switchgear systems.

The CH1A-40.5 40.5KV High Voltage Contact Box Insulator Switchgear Three Way Dual Hole is an essential component for modern electrical systems. With robust epoxy resin construction, international certifications, reliable insulation properties, and ease of maintenance, it ensures safe and efficient high-voltage operation. Adhering to installation, safety, and cleaning protocols maximizes lifespan and performance.
