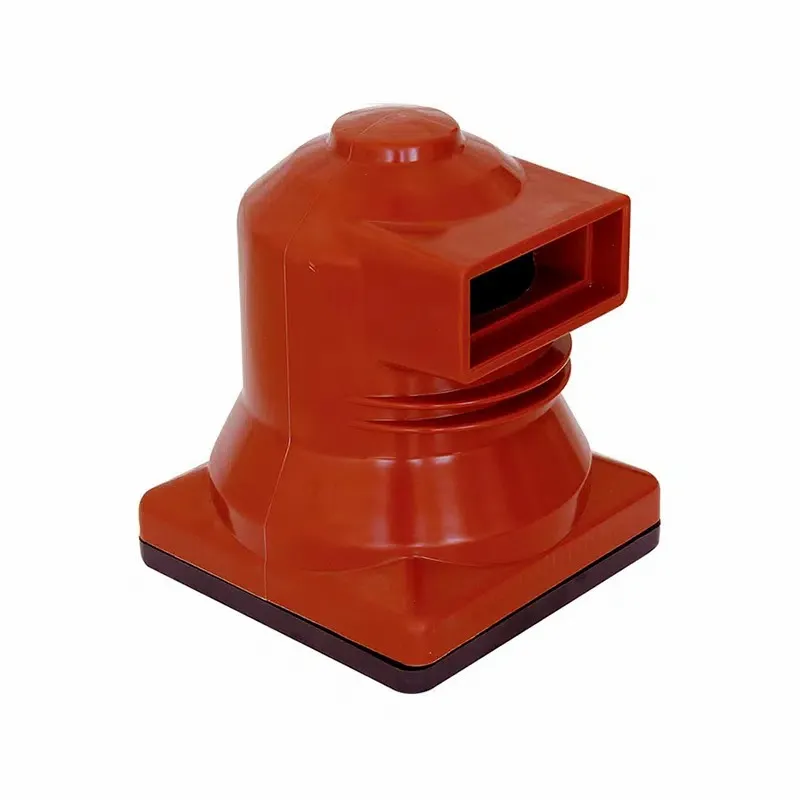

The CH5-12-250 contact box (rated current 2500~3150A) is a high-performance electrical component designed for medium voltage switchgear systems. Engineered for reliability, durability, and efficiency, it provides safe and stable high-current connectivity in industrial, utility, and commercial applications.

This detailed guide includes packaging information, cleaning methods, installation procedures, and after-sales support, helping engineers, technicians, and procurement professionals understand the product fully while optimizing for Google SEO standards.

Product Overview

The CH5-12-250 Contact Box is engineered to meet stringent electrical and mechanical standards:

• Rated Current: 2500~3150A, suitable for medium to high-demand applications.

• Voltage Rating: 12KV, compatible with standard switchgear panels.

• Material: High-grade epoxy resin and conductive metals ensure robust insulation and performance.

• Design: Compact, easy to install, and suitable for various industrial environments.

• Thermal Management: Designed for efficient heat dissipation during heavy load operation.

Packaging Information

Proper packaging ensures safe transportation and delivery to clients:

Standard Packaging

• Each CH5-12-250 Contact Box is individually wrapped in anti-static, moisture-resistant film.

• Protective foam padding surrounds the unit to prevent mechanical damage.

• Corrugated cardboard boxes or wooden crates are used depending on shipment volume.

Shipping Guidelines

1. Secure Placement: Ensure units are tightly packed to prevent movement during transport.

2. Labeling: Include product name, rated current, voltage, and handling instructions on each package.

3. Environmental Consideration: Use recyclable and eco-friendly materials when possible.

4. Customs Compliance: Packaging complies with international shipping standards to avoid delays.

Handling Tips

• Avoid dropping or stacking excessively heavy items on top of the boxes.

• Keep packages dry and avoid exposure to direct sunlight or high humidity.

• Inspect packaging immediately upon delivery for damage.

Installation Guidelines

Proper installation is crucial for safety, performance, and longevity:

Pre-Installation Preparation

1. Inspection: Check the contact box for physical damage, cracks, or contamination.

2. De-Energization: Ensure the switchgear system is fully powered down.

3. Tools Required: Torque wrenches, screwdrivers, insulated gloves, and PPE.

4. Safety Gear: Wear protective gloves, goggles, and insulating clothing.

Installation Steps

1. Positioning: Align the CH5-12-250 contact box with the designated mounting area on the switchgear panel.

2. Terminal Connection: Attach conductors to terminals using manufacturer-recommended torque.

3. Check Connections: Ensure all connections are tight, clean, and free from corrosion.

4. Insulation Testing: Measure insulation resistance using a megohmmeter before energizing.

5. System Power-On: Energize the system and monitor for abnormal heat, vibration, or noise.

Installation Tips

• Avoid over-tightening screws to prevent epoxy resin damage.

• Ensure proper airflow around the contact box to support heat dissipation.

• Verify load capacity and system compatibility before final installation.

Cleaning Methods

Regular cleaning maintains optimal performance and reduces the risk of faults:

Recommended Cleaning Schedule

• Monthly: Remove dust and light debris from the surface.

• Quarterly: Inspect terminals and insulation for contamination.

• Annually: Comprehensive cleaning during full system inspection.

Cleaning Procedures

1. Surface Cleaning: Use a soft, dry brush or compressed air to remove dust.

2. Terminal Cleaning: Wipe terminals with a clean, dry cloth; avoid abrasive materials.

3. Avoid Chemicals: Do not use solvents, water, or harsh chemicals on epoxy resin surfaces.

4. Protective Measures: Ensure the unit is de-energized before cleaning.

Maintenance Tips

• Keep surrounding areas free from dust, moisture, and corrosive materials.

• Apply protective coatings if installed in humid or corrosive environments.

• Record cleaning activities to maintain maintenance logs.

After-Sales Support

Warranty Terms

• Standard Warranty: 1-year manufacturer coverage for material defects.

• Extended Warranty: Optional 2–5 year coverage for industrial clients.

• Exclusions: Misuse, improper installation, or environmental damage is not covered.

Technical Support

• Installation Assistance: Guidance on secure mounting, terminal connection, and torque specifications.

• Maintenance Support: Recommendations for cleaning, inspection, and replacement intervals.

• Troubleshooting Help: Assistance with abnormal heat, noise, or electrical faults.

Replacement Policy

• Defective Units: Quick replacement of defective units under warranty.

• Damaged During Shipping: Packages inspected immediately upon arrival; replacements shipped promptly.

• Spare Parts: Available for terminals, insulation, and hardware components.

Troubleshooting Guide

Common Issues

• Overheating: Check load and thermal management pathways.

• Loose Connections: Re-torque terminals as per manufacturer specifications.

• Insulation Deterioration: Monitor with insulation resistance tests and replace if below threshold.

Applications

The CH5-12-250 Contact Box is suitable for heavy-duty industrial, commercial, and utility applications:

Industrial Facilities

Supports high-power machinery and production line electrical distribution.

Power Substations

Provides reliable connectivity for medium voltage switchgear in electrical grids.

Renewable Energy Installations

Stable performance in solar, wind, and hydroelectric systems.

Commercial Buildings

Used in large commercial complexes, hospitals, and office buildings requiring robust power distribution.

Transportation Networks

Applied in railways, subways, and high-demand transport infrastructure.

Advantages of CH5-12-250 Contact Box

1. High Current Capacity: Handles 2500~3150A reliably.

2. Durable Insulation: Epoxy resin ensures high dielectric strength.

3. Compact Design: Easy integration into standard switchgear panels.

4. Maintenance-Friendly: Easy cleaning and inspection.

5. Thermal Management: Efficient heat dissipation during heavy load operations.

6. Robust Construction: Compliant with IEC 62271 standards.

7. Environmental Compliance: RoHS-certified materials ensure sustainability.

8. Reliable Connectivity: Secure terminal connections reduce electrical losses.

User Feedback

Industrial Clients

Report minimal downtime, stable performance under heavy load, and straightforward installation.

Utility Providers

Appreciate the CH5-12-250’s reliable operation, durability, and ease of maintenance.

Renewable Energy Users

Value the compact design, thermal stability, and long service life under variable load conditions.

Sample Testimonial:
"The CH5-12-250 Contact Box has provided consistent high-current performance in our switchgear systems. Its epoxy insulation, robust construction, and ease of installation make it ideal for industrial and utility applications." – Electrical Engineer, Substation Operator

The CH5-12-250 Contact Box (rated current 2500~3150A) is a reliable, high-current component for 12KV medium voltage switchgear systems. With proper packaging, installation, cleaning, and after-sales support, it ensures:

• Safe and stable electrical connectivity

• Durable epoxy insulation

• Efficient heat management

• Compliance with international standards

• Long-term reliability in industrial, commercial, and utility applications

By following installation guidelines, cleaning methods, and troubleshooting procedures, users can maximize performance and extend service life, making the CH5-12-250 an essential component for heavy-duty electrical systems.
