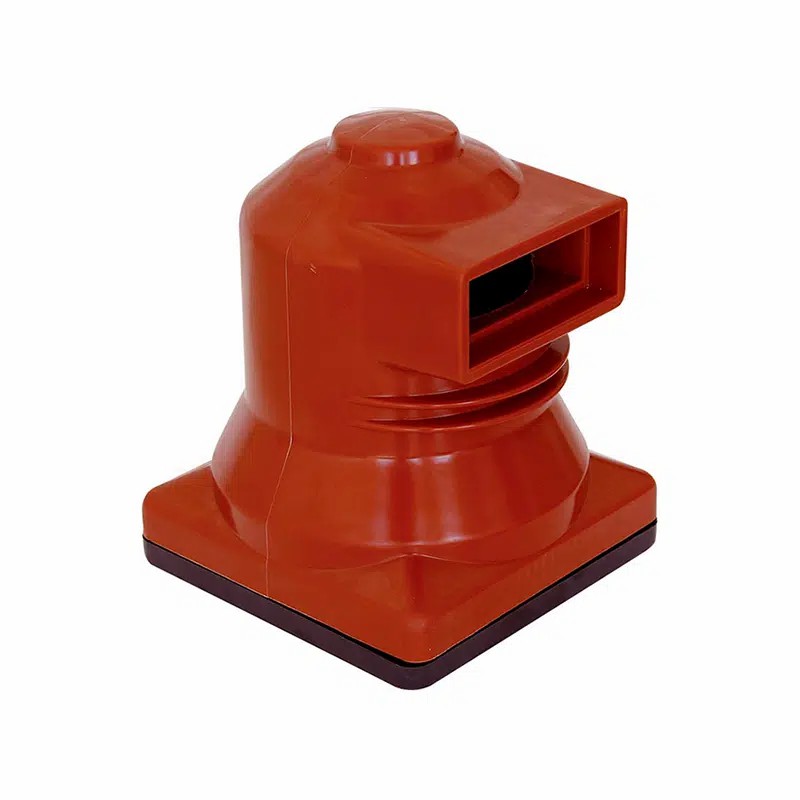

The CH6-12-280 contact box (rated current 3150~4000A) is a high-performance electrical component designed for medium voltage switchgear systems. Engineered to handle high current loads of up to 4000A at 12KV, it provides reliable electrical connectivity, enhanced safety, and long-term durability.

This comprehensive guide covers the design philosophy, maintenance techniques, warranty policies, and compliance with environmental standards, providing engineers, technicians, and procurement teams with essential information for installation, operation, and maintenance.

Product Overview

The CH6-12-280 Contact Box is designed to meet the demands of heavy-duty industrial and utility applications:

• Rated Current: 3150~4000A, suitable for high-load operations.

• Voltage Rating: 12KV medium voltage switchgear compatibility.

• Material: High-grade epoxy resin and conductive metals ensuring durability and insulation.

• Thermal Management: Designed for efficient heat dissipation during continuous operation.

• Safety Compliance: Meets international standards for mechanical strength, insulation, and environmental resistance.

Design Philosophy

The CH6-12-280 Contact Box was developed with safety, efficiency, and durability as core principles:

1. High Current Capacity: Designed to handle 3150~4000A with minimal electrical loss.

2. Robust Insulation: Epoxy resin ensures high dielectric strength, preventing electrical faults.

3. Thermal Stability: Efficient heat dissipation mechanisms reduce thermal stress during continuous operation.

4. Mechanical Durability: Compliant with IEC 62271 standards to withstand vibrations, shocks, and mechanical stress in industrial environments.

5. Ease of Installation: Standard terminals and compact design allow straightforward integration into switchgear systems.

6. Sustainability: Designed using environmentally friendly materials meeting RoHS and ISO standards.

Applications

The CH6-12-280 Contact Box is suitable for high-demand environments, including:

Industrial Plants

Supports heavy machinery and high-power electrical distribution systems.

Power Substations

Reliable connectivity for medium voltage switchgear in electrical grids.

Renewable Energy Facilities

Ensures stable performance in solar, wind, and hydroelectric power installations.

Commercial Complexes

Used in high-rise buildings, hospitals, and large commercial structures requiring robust electrical systems.

Transportation Infrastructure

Applied in railways, subways, and other transport networks with high power requirements.

Maintenance Techniques

Regular maintenance ensures safety, reliability, and extended service life:

Recommended Maintenance Schedule

Maintenance Tips

• Cleaning: Use dry brushes or compressed air to remove dust; avoid abrasive chemicals.

• Torque Verification: Check terminal screws against manufacturer specifications.

• Thermal Monitoring: Ensure heat dissipation areas are clear and unobstructed.

• Replacement: Replace damaged components immediately to prevent operational hazards.

• Environmental Protection: Apply protective coatings in high-humidity or corrosive areas.

Installation Guidelines

Pre-Installation Steps

1. Inspection: Check for any physical damage, contamination, or defects.

2. De-Energization: Ensure all circuits and switchgear are completely powered down.

3. Tools Required: Insulated screwdrivers, torque wrenches, and PPE.

4. Safety Gear: Use gloves, goggles, and protective clothing.

Installation Process

1. Positioning: Align the CH6-12-280 contact box within the designated mounting area.

2. Connecting Terminals: Securely attach conductors to terminals according to torque specifications.

3. Inspection: Confirm that all connections are tight and free from debris or corrosion.

4. Testing: Perform insulation resistance and continuity tests before energizing the system.

5. Power-On: Energize the system and monitor for abnormal conditions.

Installation Tips

• Avoid over-tightening screws which may damage the epoxy insulation.

• Ensure proper airflow around the unit for optimal heat dissipation.

• Verify compatibility with the existing switchgear and load requirements.

Troubleshooting and Fault Repair

Effective troubleshooting minimizes downtime and enhances safety:

Warranty and Support

Warranty Terms

• Standard Coverage: 1-year manufacturer warranty against material defects.

• Extended Options: Optional 2–5 year coverage for industrial clients.

• Exclusions: Damage due to misuse, improper installation, or environmental abuse is not covered.

Technical Support

• Installation Assistance: Step-by-step guidance for secure mounting and connection.

• Maintenance Support: Recommendations for cleaning, testing, and replacement.

• Troubleshooting: Assistance for operational issues or abnormal performance.

Environmental Standards

The CH6-12-280 Contact Box complies with international environmental and sustainability standards:

1. RoHS Compliance: Free from hazardous substances.

2. ISO Standards: Designed for environmentally responsible manufacturing processes.

3. Eco-Friendly Materials: Epoxy resin and metals sourced to minimize environmental impact.

4. Energy Efficiency: Minimal electrical losses during operation.

5. Long Lifecycle: Durable design reduces waste and replacement frequency.

User Feedback

Customers praise the CH6-12-280 for reliability, high current handling, and ease of installation:

• Industrial Facilities: Report stable performance under continuous heavy loads.

• Utility Companies: Highlight reduced downtime and maintenance requirements.

• Renewable Energy Plants: Appreciate compact design and thermal stability under fluctuating loads.

Sample Testimonial:
"The CH6-12-280 Contact Box has consistently provided excellent high-current performance in our 12KV switchgear systems. Its design is robust, installation straightforward, and maintenance minimal. A dependable component for heavy-duty applications." – Electrical Engineer, Power Substation

Advantages of CH6-12-280 Contact Box

1. High Current Capacity: Supports 3150~4000A reliably.

2. Durable Insulation: Epoxy resin ensures high dielectric strength.

3. Thermal Management: Efficient heat dissipation during continuous operation.

4. Mechanical Strength: Resists vibration, shock, and mechanical stress.

5. Maintenance-Friendly: Easy inspection, cleaning, and replacement.

6. Quick Installation: Compact design with standard terminals.

7. Environmental Compliance: RoHS and ISO certified materials.

8. Long Service Life: Built for heavy-duty industrial and utility applications.

The CH6-12-280 Contact Box (rated current 3150~4000A) is an essential high-current component for medium voltage switchgear systems, providing:

• Reliable electrical connectivity

• Durable epoxy insulation

• Efficient thermal management

• Compliance with international environmental and safety standards

• Long-term operational stability

With proper installation, maintenance, and adherence to warranty and safety guidelines, the CH6-12-280 ensures optimal performance in industrial, utility, and renewable energy applications.
