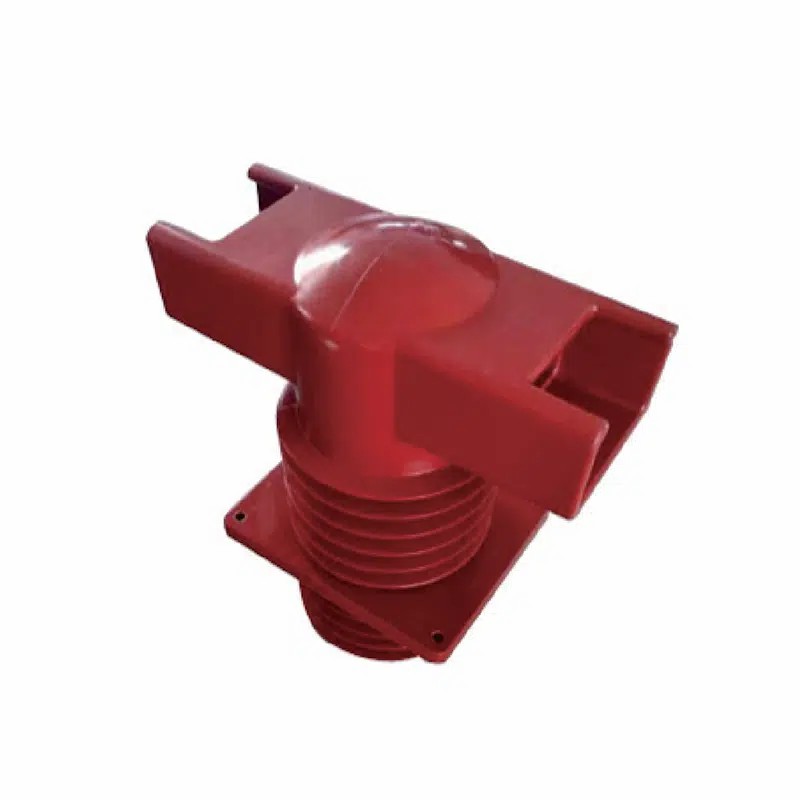

The CH6A-40.5-550 Electrical Insulation contact box is a high-performance dual-hole contact box designed for high-voltage and medium-voltage switchgear applications. Engineered with advanced insulation materials, it provides excellent dielectric strength, mechanical stability, and long-term reliability.

This guide provides a comprehensive overview of material specifications, storage conditions, product advantages, and upgrade maintenance plans, structured with SEO-friendly headings, tables, and clear paragraphs, suitable for website and B2B platform publishing.

Product Overview

The CH6A-40.5-550 contact box is designed to enhance electrical insulation, improve safety, and support mechanical performance in medium and high-voltage switchgear systems. It is widely utilized in substations, industrial Power Systems, and electrical distribution networks.

Key Features

• Dual Hole Design: Facilitates easy integration and reliable electrical connection.

• High Voltage Compatibility: Rated for 40.5 kV operations.

• Medium Voltage Performance: Suitable for industrial and commercial switchgear.

• Robust Insulation: Ensures high dielectric strength and prevents flashover.

• Durable Construction: Withstands mechanical stress, vibration, and environmental exposure.

Applications

• High-voltage and medium-voltage switchgear cabinets

• Electrical substations and transformer stations

• Industrial power distribution systems

• Renewable energy installations requiring high-voltage insulation

• Commercial and utility electrical networks

Product Advantages

Superior Electrical Insulation

• Rated for high-voltage and medium-voltage applications.

• Reduces risk of electrical leakage, flashover, and short circuits.

• Maintains stable dielectric performance under operational stress.

Mechanical Reliability

• Constructed with high-strength insulation materials.

• Resistant to tensile, compressive, and vibration-induced stresses.

• Maintains structural integrity in demanding industrial environments.

Environmental Durability

• Resistant to humidity, dust, chemical exposure, and UV radiation.

• Long service life reduces maintenance and replacement cycles.

• Ensures Safe Operation in indoor and outdoor switchgear systems.

Operational Efficiency

• Dual-hole design simplifies installation and reduces connection errors.

• Compatible with standard switchgear mounting hardware.

• Facilitates modular installation and maintenance.

Material Specifications

Storage Conditions

Proper storage ensures longevity and performance of the CH6A-40.5-550 contact box:

Environmental Conditions

• Store in a cool, dry environment.

• Avoid direct sunlight, high humidity, and corrosive chemicals.

• Maintain ambient temperature between -25°C and +40°C.

Handling Instructions

• Handle with care to avoid mechanical damage.

• Avoid dropping or applying excessive force.

• Keep components clean and free from dust or debris.

Shelf Life

• Recommended storage period: up to 24 months in proper conditions.

• Inspect before installation to ensure surface integrity and insulation performance.

Upgrade and Maintenance Plan

Regular maintenance and timely upgrades ensure long-term reliability of electrical contact boxes.

Upgrade Plan

• Material Enhancements: Use improved resin composites for higher dielectric strength.

• Design Optimization: Reduce stress points and improve dual-hole alignment.

• Performance Monitoring: Integrate temperature and leakage sensors for predictive maintenance.

Maintenance Schedule

Troubleshooting

Environmental and Safety Standards

The CH6A-40.5-550 series complies with international electrical and environmental standards:

• IEC 60694: High-voltage switchgear insulation requirements

• ISO 9001: Quality management and product reliability

• RoHS Compliance: Free of hazardous substances

• CE Certification: Ensures compliance with EU safety regulations

Environmental benefits include:

• Long service life reducing material waste

• Eco-friendly insulation materials minimizing environmental impact

• Safe operation in industrial and renewable energy applications

User Guide

Installation Steps

1. Power Down Equipment: Ensure switchgear is de-energized.

2. Align Contact Box: Place CH6A-40.5-550 in designated mounting slots.

3. Secure Fasteners: Tighten bolts and brackets evenly.

4. Verify Connections: Ensure dual-hole alignment is correct.

5. Inspection: Confirm no contaminants are present.

6. Energize Equipment: After final verification.

Safety Precautions

• Use insulated tools and protective gear.

• Do not handle under live voltage.

• Avoid mechanical impacts during installation or maintenance.

Technical Advantages Over Competitors

• Dual-hole design: Reduces installation errors.

• High-quality resin: Superior dielectric and mechanical properties.

• Environmental resistance: Performs in harsh industrial conditions.

• Modular and standardized: Simplifies integration and maintenance.

Customer Feedback

• Reliable Performance: Prevents flashovers in medium and high-voltage systems.

• Durable Construction: Reduces frequency of replacements and maintenance.

• Ease of Use: Dual-hole design simplifies installation.

• Long-Term Reliability: Maintains electrical insulation integrity under varied conditions.

The CH6A-40.5-550 Electrical Insulation Contact Box provides robust dual-hole insulation for high-voltage and medium-voltage switchgear. Constructed with high-quality resin, it ensures dielectric strength, mechanical durability, and environmental resistance. Ideal for substations, industrial power systems, and electrical networks requiring reliable insulation and secure connections.

The CH6A-40.5-550 Electrical Insulation Contact Box is a high-performance solution for high-voltage and medium-voltage switchgear systems. With dual-hole design, durable insulation materials, environmental compliance, and comprehensive upgrade and maintenance plans, it provides long-term reliability, safety, and operational efficiency in industrial and commercial power installations.
