The High Voltage tulip contact EB-5-630A (24 pieces) is a high-performance accessory for vacuum circuit breakers (VCB), designed to ensure reliable power distribution, reduce maintenance, and enhance the longevity of high-voltage switchgear systems. These tulip contacts are essential components for medium and high-voltage switchgear, providing stable electrical conduction, minimal contact resistance, and exceptional mechanical durability.

This article covers technical specifications, primary functions, maintenance and support, installation requirements, and other critical aspects of EB-5-630A, optimized for Google SEO to attract engineers, procurement managers, and industrial buyers.

Product Overview

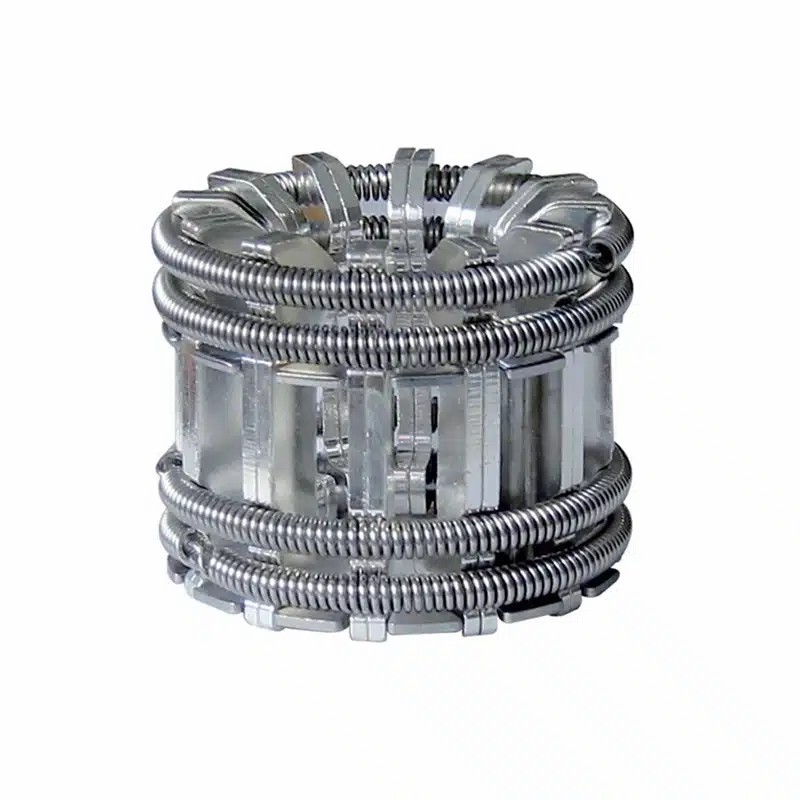

The EB-5-630A tulip contact is a 24-piece set designed for high-voltage VCBs, providing superior conductivity, thermal stability, and mechanical resilience. Its tulip-shaped spring finger design ensures consistent contact pressure and excellent arc resistance under harsh conditions.

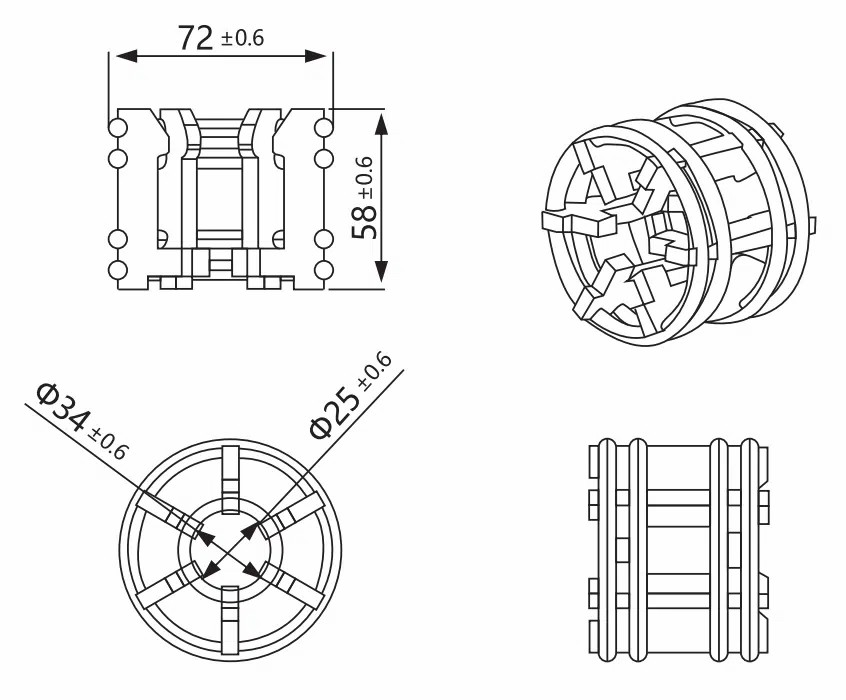

Technical Specifications

Key Features

1. High Conductivity Material – Silver-plated copper alloy ensures low resistance and reliable electrical performance.

2. Tulip Finger Design – Multi-spring structure provides uniform contact pressure.

3. Arc Resistance – Optimized for repetitive switching operations.

4. Thermal Stability – Maintains performance under rated and overcurrent conditions.

5. Compatibility – Suitable for most medium- and high-voltage VCB models.

Main Functions

The EB-5-630A tulip contact serves as the critical electrical interface between the moving and fixed contacts of a VCB. Its primary functions include:

1. Electrical Conduction

• Ensures low-resistance current flow.

• Maintains stable performance under varying electrical loads.

2. Mechanical Flexibility

• Tulip design accommodates vibration and mechanical stress.

• Absorbs thermal expansion and contraction, preventing contact damage.

3. Arc Suppression

• Minimizes arc formation during switching.

• Extends the service life of both the contact and the breaker.

4. High Reliability

• Reduces system downtime.

• Ensures Safe Operation in industrial and utility-scale Power Systems.

Maintenance and Upkeep

Proper maintenance of tulip contacts is essential to ensure long-term performance and prevent unexpected failures.

Maintenance Schedule

Signs of Wear

• Elevated temperature during operation

• Visible erosion or pitting on contact surfaces

• Contact resistance exceeding 60 µΩ

Maintenance Tips

• Avoid using abrasive materials when cleaning contacts

• Store spare contacts in dry, dust-free conditions

• Record maintenance actions for future reference

Technical Support

Reliable technical support is crucial for installation, maintenance, and troubleshooting. For EB-5-630A, manufacturers typically provide:

1. Installation Guidance

• Step-by-step manuals for replacement and alignment

• Torque specifications for fastening bolts

2. Performance Monitoring

• Recommended tools to measure contact resistance

• Guidelines for thermal and mechanical inspection

3. Troubleshooting

• Detecting arcing or overheating

• Recommendations for spring tension adjustment or replacement

4. Replacement Planning

• Suggested inventory of spare contacts

• Compatibility charts for different VCB models

Installation Conditions

Correct installation ensures optimal performance and long-term reliability.

Environmental Requirements

• Temperature: -25°C to +45°C

• Humidity: ≤ 90% at 25°C

• Altitude: ≤ 1000 meters (derating required above)

• Pollution Level: Class II to III

Mechanical Requirements

• Precise alignment of moving and fixed contacts

• Proper torque for mounting bolts

• Avoid mechanical stress to preserve spring integrity

Step-by-Step Installation

1. Switch off and isolate the VCB

2. Remove old tulip contacts carefully

3. Clean all contact surfaces

4. Install EB-5-630A contacts, ensuring alignment

5. Secure bolts to manufacturer torque specifications

6. Test contact resistance before energizing the system

Comparison with Conventional Contacts

Application Areas

1. Power Utilities

• Medium- and high-voltage switchgear in substations

• Ensures reliable energy distribution

2. Industrial Facilities

• Mining, steel plants, and chemical industries

• Supports high-load operations

3. Renewable Energy

• Solar and wind farms integrating into grids

• Guarantees stable power transfer

4. Critical Infrastructure

• Airports, metros, data centers

• Ensures continuous power supply

Quality Standards

The EB-5-630A is manufactured in compliance with international standards:

• IEC 62271-100 – High-voltage switchgear

• ISO 9001 – Quality management system

• RoHS Compliance – Environmentally safe materials

All units undergo rigorous testing procedures:

• Contact resistance measurement

• Mechanical endurance cycles

• High-current thermal tests

Packaging and Delivery

• Quantity: 24 pieces per box

• Shockproof packaging to prevent damage

• Custom OEM packaging available

Advantages

• Reliable Electrical Performance: Low contact resistance and high conductivity

• Long Service Life: Durable spring design and silver plating

• Reduced Maintenance: Extended intervals compared to standard contacts

• Ease of Installation: Plug-and-play replacement

• Versatile Applications: Suitable for various VCB models and environments

The High Voltage Tulip Contact VCB Vacuum Circuit Breaker Switchgear Accessories Reliable Quality EB-5-630A (24 pieces) is a vital component for ensuring the safety, efficiency, and reliability of medium- and high-voltage electrical systems. Its superior design, durable materials, and easy maintenance make it ideal for substations, industrial plants, and renewable energy applications, providing both reliability and cost-effectiveness for power distribution professionals.
