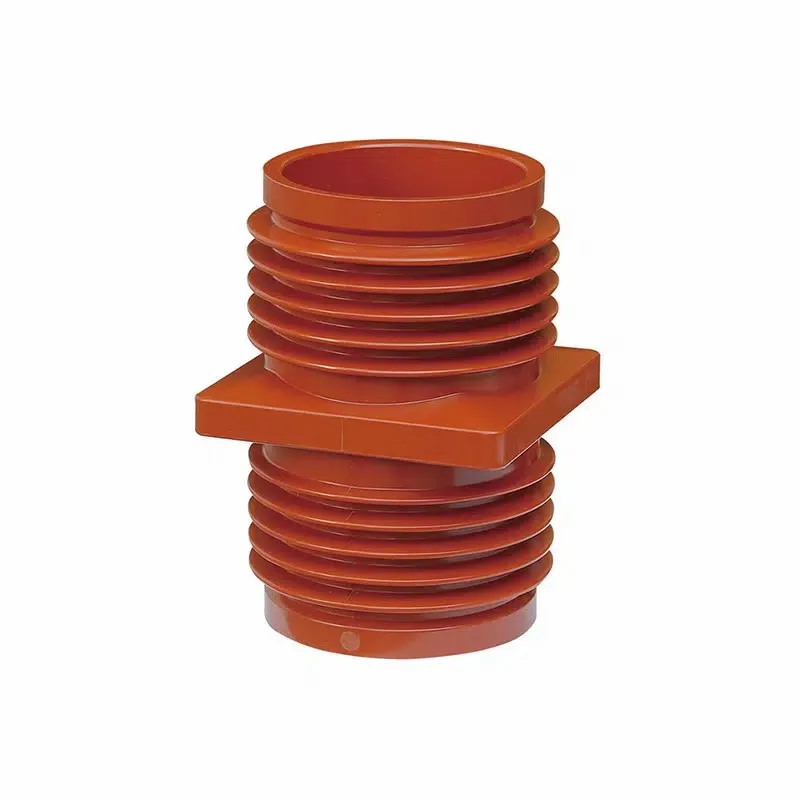

The TG5-12-152X152 12KV Epoxy Resin wall bushing for High Voltage Electrical Cabinets is a high-performance insulating component designed for safe and efficient conductor passage in medium and high-voltage electrical systems. Constructed from durable epoxy resin, this wall bushing ensures exceptional dielectric performance, mechanical strength, and thermal stability, making it ideal for modern electrical cabinets in industrial, utility, and renewable energy applications.

This comprehensive guide provides detailed information about the installation process, maintenance methods, product parameters, and technical indicators, offering engineers, technicians, and procurement specialists essential insights for optimal use.

Product Overview

The TG5-12-152X152 wall bushing is engineered for reliable medium-voltage insulation:

• Rated Voltage: 12KV

• Material: High-strength epoxy resin

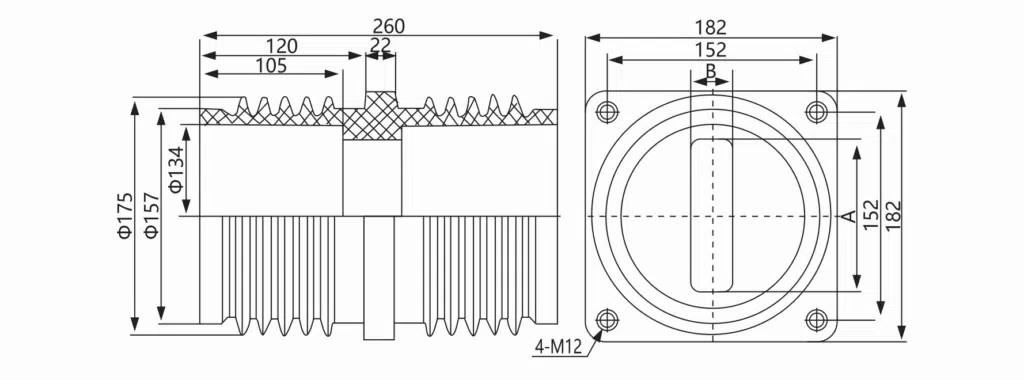

• Dimensions: 152×152 mm

• Current Capacity: Supports nominal operational currents for high-voltage cabinets

• Mechanical Durability: Resistant to vibration, thermal stress, and impact

• Compliance: Meets IEC 62271, IEEE, and RoHS standards

Design Philosophy

The TG5-12-152X152 wall bushing is designed to achieve maximum insulation, durability, and safety for electrical cabinets.

Key Design Principles

1. Epoxy Resin Construction: Ensures high dielectric performance and mechanical stability.

2. Thermal Stability: Maintains shape and performance under continuous load and high temperature.

3. Compact Form Factor: 152×152 mm dimensions allow efficient integration into electrical cabinets.

4. Mechanical Strength: Resistant to vibration, impact, and thermal cycling.

5. Environmental Compliance: Materials and production adhere to RoHS and other eco-friendly standards.

Product Advantages

1. Superior Electrical Insulation

• High-strength epoxy resin provides excellent dielectric properties, reducing the risk of short circuits.

• Ensures reliable insulation in medium and high-voltage operations.

2. Mechanical Reliability

• Resistant to vibration, impact, and thermal expansion.

• Extends service life and reduces maintenance frequency.

3. Thermal Performance

• Effective heat dissipation under operational current loads.

• Supports continuous operation in high-temperature environments.

4. Environmental Sustainability

• RoHS certified, free from harmful substances.

• Epoxy resin construction ensures long-term, eco-friendly performance.

Product Highlights

Technical Indicators

The TG5-12-152X152 wall bushing incorporates advanced technical features for high performance and reliability.

Installation Guide

Pre-Installation Preparation

• Ensure bushing is free of cracks and defects.

• Turn off all power supplies to the cabinet.

• Prepare tools and personal protective equipment (PPE).

Installation Steps

1. Position the Bushing: Align with wall opening of the cabinet.

2. Secure Mounting: Use bolts and washers according to manufacturer torque specifications.

3. Connect Busbars: Tighten conductors for reliable electrical contact.

4. Verify Insulation: Conduct dielectric tests before energization.

5. Energize System: Monitor temperature and operational performance during initial use.

Best Practices

• Avoid over-tightening bolts to prevent epoxy resin damage.

• Maintain proper ventilation around the bushing.

• Ensure current load does not exceed rated capacity.

Maintenance Methods

Routine Inspection

• Check for cracks, discoloration, or surface damage.

• Verify mounting bolts and conductor connections for tightness.

Cleaning

• Use a soft brush or compressed air to remove dust.

• Avoid harsh chemicals or abrasive materials.

Functional Testing

• Measure insulation resistance with a megohmmeter.

• Monitor temperature rise during operational load.

• Check for unusual operational noises.

Troubleshooting & Common Issues

User Feedback

• Industrial Plants: Report reliable performance under continuous high-voltage operation.

• Utility Companies: Appreciate mechanical and thermal durability.

• Renewable Energy Projects: Highlight compact design and ease of installation.

Testimonial:
"TG5-12-152X152 wall bushing offers superior insulation and reliability, ensuring Safe Operation in our high-voltage cabinets." – Electrical Engineer, Power Utility

Environmental Compliance

• RoHS Certified: Free from hazardous substances.

• Eco-Friendly Materials: Durable epoxy resin for long-term use.

• Recyclable Components: Designed for environmentally responsible disposal.

• Low Emission Manufacturing: Produced with sustainable processes.

The TG5-12-152X152 12KV Epoxy Resin Wall Bushing for High Voltage Electrical Cabinets is a reliable, safe, and environmentally compliant solution for medium and high-voltage electrical systems.

• High dielectric strength and mechanical durability

• Thermal stability for continuous operation

• Simplified installation and maintenance

• Wide applicability across industrial, utility, and renewable energy sectors

• Environmentally friendly materials and production

This bushing ensures efficient, safe, and long-lasting electrical cabinet performance, making it essential for modern high-voltage installations.
