The Bending Plate component features a unique bending structure, allowing it to accommodate mechanical stresses and support the proper alignment of various parts within the system. The Bending Plate is typically utilized to isolate live parts and maintain a safe distance between conductive elements, thus enhancing the overall safety and reliability of electrical systems.
Its precise dimensions and excellent thermal and electrical properties make it suitable for applications in high-voltage environments, withstanding high mechanical loads while preventing electrical breakdowns.

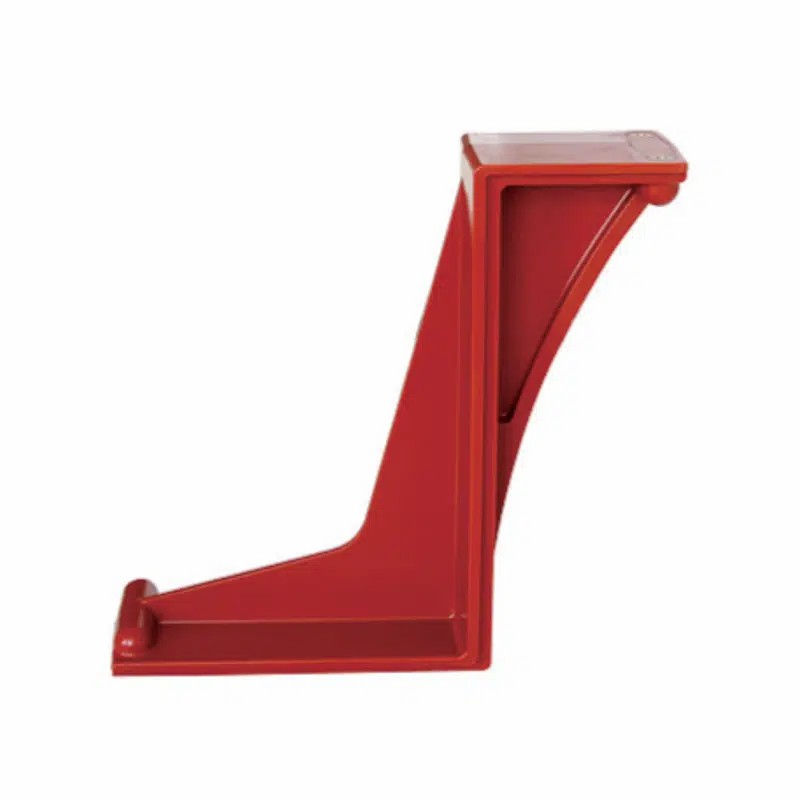

The WB2 40.5 kV High Voltage Red Epoxy Resin Baffle Plate is a high-performance insulation component designed for electrical systems, switchgear, and industrial power equipment. Engineered from premium red epoxy resin, this baffle plate provides reliable dielectric strength, mechanical durability, and environmental resistance, ensuring safe, long-term operation in high-voltage applications.
This guide covers product advantages, technical specifications, environmental compliance, and after-sales support, structured with SEO-friendly headings, tables, and clear, professional paragraphs suitable for websites and B2B platforms.
The WB2 40.5 kV Baffle Plate is intended for high-voltage electrical insulation and mechanical support. It is widely used in switchgear cabinets, substations, transformers, and industrial power networks.
High Voltage Compatibility: Rated for 40.5 kV.
Red Epoxy Resin Construction: Provides high dielectric strength, chemical resistance, and mechanical stability.
Environmental Protection: Resistant to UV radiation, moisture, dust, and industrial chemicals.
Mechanical Reliability: Withstands tensile, compressive, and vibration stresses.
Maintenance-Friendly Design: Modular structure facilitates easy installation, inspection, and replacement.
Switchgear Cabinets: Insulation for contact boxes and internal components.
Substations: Ensures dielectric integrity and operational safety.
Transformers: Provides secure separation for high-voltage circuits.
Industrial Power Systems: Reliable performance in factories, plants, and commercial installations.
Renewable Energy Installations: Suitable for solar, wind, and high-voltage renewable equipment.
Rated for 40.5 kV, preventing leakage currents and flashovers.
Maintains high dielectric strength under long-term operational conditions.
Red epoxy resin construction ensures tensile and compressive strength.
Resistant to vibration, impact, and operational stress in industrial environments.
Withstands UV exposure, humidity, dust, and chemicals.
Ensures long-term stability in both indoor and outdoor installations.
Modular and standardized for quick installation and replacement.
Reduces downtime with minimal maintenance requirements.
Manufactured according to IEC, ISO, CE, and RoHS standards.
Environmentally friendly materials reduce industrial carbon footprint.
| Parameter | Specification |
|---|---|
| Model | WB2 40.5 kV |
| Material | Red Epoxy Resin |
| Rated Voltage | 40.5 kV |
| Dielectric Strength | ≥ 40 kV |
| Operating Temperature | -40°C to +85°C |
| Mechanical Strength | High tensile and compressive |
| Environmental Resistance | UV, moisture, dust, chemical |
| Mounting Type | Standard switchgear brackets |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Applications | Switchgear, transformers, substations, industrial equipment |
The WB2 40.5 kV baffle plate meets modern environmental standards and supports sustainable operations:
Made from eco-friendly red epoxy resin.
Free of hazardous substances, compliant with RoHS directives.
Reduces maintenance frequency, minimizing waste and energy usage.
Long service life decreases replacement cycles and material consumption.
Meets IEC environmental testing standards for electrical insulation materials.
Suitable for green energy and sustainable industrial applications.
Proper installation ensures optimal performance and safety:
Verify that the baffle plate is free from cracks or damage.
Confirm compatibility with switchgear or electrical equipment.
Ensure all mounting hardware is available.
Prepare a clean, dry installation environment.
Power Down Equipment: Ensure de-energized state.
Align Plate: Position WB2 40.5 kV baffle plate in designated mounting location.
Secure Fasteners: Evenly tighten bolts and brackets.
Check Clearances: Maintain proper spacing between conductive parts.
Final Inspection: Verify alignment, secure mounting, and absence of contaminants.
Energize Equipment: Only after completing inspection.
Wear protective gloves, eyewear, and insulated tools.
Avoid handling under live voltage.
Prevent mechanical impact or bending during installation.
The WB2 40.5 kV baffle plate series comes with comprehensive after-sales support:
Standard manufacturer warranty against defects in materials and workmanship.
Covers electrical insulation and mechanical integrity under recommended usage.
Installation guidance and troubleshooting support.
Maintenance recommendations for prolonged performance.
Remote support for industrial and substation applications.
Modular design allows easy replacement of individual plates.
Access to genuine spare parts for consistent performance.
Manufacturer monitors user feedback for continuous product improvement.
Updates on material and design upgrades based on field performance.
Check for cracks, discoloration, or surface damage.
Inspect fasteners and mounting hardware for tightness.
Examine contact interfaces for contamination or wear.
Use non-abrasive cloths and mild detergent.
Remove dust, dirt, and chemical residues.
Maintain a dry, clean environment to prevent degradation.
Perform insulation resistance tests periodically.
Monitor leakage currents and dielectric performance.
Tighten mounting hardware and replace damaged components promptly.
| Maintenance Task | Frequency | Method |
|---|---|---|
| Visual Inspection | Monthly | Check surface, fasteners, and mounting |
| Electrical Testing | Quarterly | Insulation resistance, dielectric tests |
| Mechanical Verification | Semi-Annually | Tighten fasteners, inspect alignment |
| Cleaning | As Needed | Non-abrasive cleaning with mild detergent |
| Record Keeping | Continuous | Maintain inspection and maintenance logs |
| Issue | Cause | Solution |
|---|---|---|
| Surface cracks or damage | Mechanical stress or impact | Replace plate immediately |
| Flashover or leakage | Contamination or improper spacing | Clean, verify alignment, test insulation |
| Loose fasteners | Vibration or installation error | Retighten bolts and brackets |
| Reduced dielectric performance | Aging or environmental exposure | Test insulation and replace as necessary |
| Surface contamination | Dust, moisture, chemicals | Clean using recommended methods |
Users report several benefits of the WB2 40.5 kV baffle plate:
Reliable High-Voltage Insulation: Prevents flashovers in critical circuits.
Durable Construction: Red epoxy resin withstands industrial environments.
Ease of Installation: Modular design simplifies integration and replacement.
Reduced Maintenance: Long lifespan minimizes replacements.
Consistent Performance: Maintains insulation integrity under varied conditions.
The WB2 40.5 kV High Voltage Red Epoxy Resin Baffle Plate provides robust insulation and mechanical support for electrical systems and switchgear. Constructed with durable red epoxy resin, it ensures high dielectric strength, environmental resistance, and reliable long-term performance, ideal for industrial, substation, and high-voltage electrical applications.
The WB2 40.5 kV High Voltage Red Epoxy Resin Baffle Plate is a high-performance solution for insulation and mechanical support in electrical systems. With durable construction, environmental compliance, modular installation, and reliable after-sales support, it ensures long-term operational safety, reliability, and efficiency in switchgear, substations, and industrial applications.
