The YM-GTXGN-12 Solid Insulation Ring Main Unit (RMU) Switchgear represents a state-of-the-art medium voltage electrical distribution solution. Designed with solid insulation technology, this RMU ensures high reliability, safety, and compactness for urban substations, industrial networks, and utility Power Systems.

This guide provides a comprehensive overview of user instructions, maintenance requirements, safety operation procedures, and routine maintenance methods, making it an essential reference for engineers, operators, and procurement professionals.

Table of Contents

1. Overview of YM-GTXGN-12 RMU switchgear

2. Technical Specifications

3. User Guide and Operation Instructions

4. Safety Operation Procedures

5. Maintenance Requirements

6. Routine Inspection and Servicing

7. Troubleshooting Common Issues

8. Recommended Tools and Equipment

9. Applications and Installation Environments

10. Certifications and Compliance

11. Conclusion

1. Overview of YM-GTXGN-12 RMU Switchgear

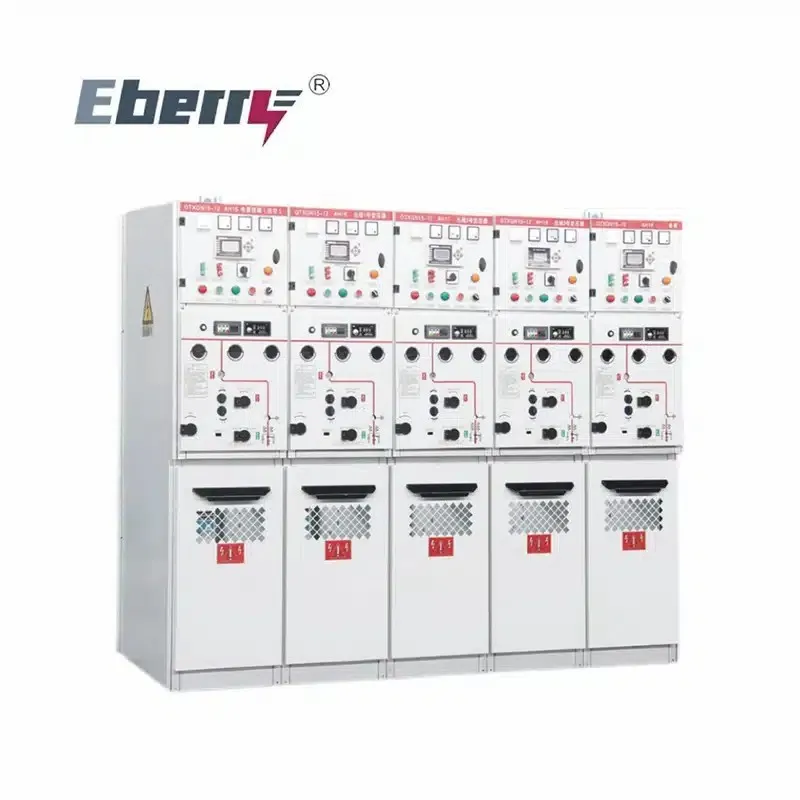

The YM-GTXGN-12 Solid Insulation RMU is a medium voltage, metal-enclosed switchgear designed for safe and reliable electrical distribution. Key features include:

• Solid Insulation Technology: Provides enhanced dielectric strength and long-term reliability.

• Compact Modular Design: Reduces footprint in urban and industrial installations.

• IEC Certified: Compliant with international safety and performance standards.

• Indoor and Outdoor Installation: Suitable for a wide range of environmental conditions.

• Reliable Switching: High mechanical and electrical endurance ensures smooth operation.

2. Technical Specifications

This specification ensures robust performance and long-term reliability in demanding electrical networks.

3. User Guide and Operation Instructions

3.1 Operating the RMU

1. Pre-Operation Checks:

• Confirm SF6 or solid insulation condition.

• Ensure switchgear is properly grounded.

• Verify that control devices and indicators are functional.

2. Switching Operation:

• Operate switches slowly and steadily to prevent mechanical damage.

• Use interlocked mechanisms as designed to avoid unSafe Operations.

• Monitor status indicators for proper confirmation.

3. Emergency Procedures:

• If abnormal conditions occur, disconnect the power source immediately.

• Notify maintenance personnel and follow the established emergency protocol.

3.2 Control Panel Features

4. Safety Operation Procedures

4.1 General Safety Guidelines

• Always disconnect power before inspection or maintenance.

• Wear PPE, including insulated gloves, safety glasses, and protective clothing.

• Avoid direct contact with live components.

• Ensure proper grounding and compliance with IEC standards.

4.2 Operational Safety

• Do not override mechanical interlocks.

• Maintain safe clearance around the switchgear cabinet.

• Regularly check gas or solid insulation indicators.

• Follow manufacturer guidelines during switching operations.

5. Maintenance Requirements

5.1 Routine Maintenance Schedule

5.2 Preventive Measures

• Ensure tight electrical connections to prevent overheating.

• Avoid exposure to moisture and dust to prolong insulation life.

• Monitor ambient temperature and maintain within recommended ranges.

6. Routine Inspection and Servicing

6.1 Inspection Checklist

• Verify switchgear alignment and cabinet integrity.

• Inspect control wiring and connections for wear.

• Check status indicators and meters for accuracy.

• Test interlocking mechanisms to ensure operational safety.

6.2 Servicing Procedure

• Shut down the system and isolate the RMU.

• Open inspection panels and examine internal components.

• Replace or repair any damaged parts, including contacts, switches, and insulation.

• Clean all components using non-conductive cleaning agents.

• Reassemble and perform functional tests before re-energizing.

7. Troubleshooting Common Issues

8. Recommended Tools and Equipment

• Insulated screwdrivers and pliers

• Multimeter and insulation resistance tester

• Torque wrench for electrical connections

• Lubrication kit for mechanical parts

• Gas detector or solid insulation monitoring device

• PPE: insulated gloves, safety glasses, and protective clothing

9. Applications and Installation Environments

YM-GTXGN-12 RMU is ideal for:

• Urban substations: Compact design suitable for high-density areas.

• Industrial facilities: Factories, manufacturing plants, and processing units.

• Renewable energy: Solar, wind, and hydroelectric networks.

• Utility networks: Medium voltage ring main distribution.

• Railway electrification systems: Stable supply for traction power.

It is compatible with indoor and outdoor environments, designed to withstand harsh conditions and ensure safe, continuous operation.

10. Certifications and Compliance

• IEC 62271 Series: medium voltage switchgear standards

• ISO 9001: Quality management and assurance

• CE Marking: Compliance with EU safety and environmental regulations

• RoHS Directive: Restriction of hazardous substances

These certifications ensure safety, reliability, and environmental compliance, making YM-GTXGN-12 RMU a trusted choice for global power distribution networks.

The YM-GTXGN-12 Solid Insulation ring main unit switchgear is a highly reliable, compact, and durable medium voltage distribution solution. Its solid insulation, metal-enclosed design, and IEC compliance ensure safe, efficient, and long-term operation for urban substations, industrial facilities, and renewable energy networks.

By following proper user guidelines, safety protocols, and maintenance schedules, operators can maximize performance, reduce downtime, and ensure operator safety. The YM-GTXGN-12 RMU delivers reliable electrical protection and efficient distribution in modern power systems.
